Brand: Panduit
|
SKU:
PAN-D14-250-M

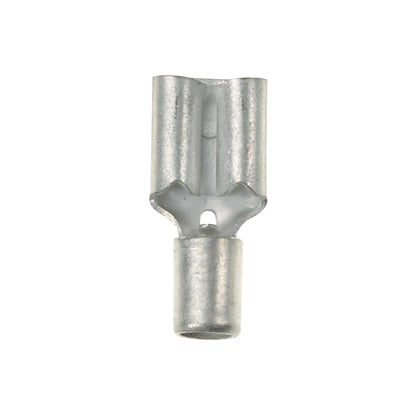

Panduit D14-250-M | Loose Piece Disconnect | UPC - 07498382203
Regular price
$246.66
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit D14-250-M | Loose Piece Disconnect | UPC - 07498382203
Regular price
$246.66
Unit price
Brand: Panduit
|
SKU:
PAN-D14-250-M
Regular price
$246.66
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Female Disconnect, Vibration Resistant, Series: D Series, Stranded Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve Barrel, Crimp Terminal, 2000 VAC, 9/32 in L Wire Strip, Standard Barrel Configuration, 302 deg F, Brass, Metallic, Tin Plated, 0.66 in L x 0.3 in W x 0.12 in H, Non-Insulated
Features + Benefits
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Right angle design for use in limited space applications
- Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
Panduit D14-250-M | Loose Piece Disconnect | UPC - 07498382203 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | UL Recognized, UL Listed 20H3 E78522; CSA Certified LR31212 |
| Maximum Voltage (V) | 2000 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Metallic |
| Barrel Type | Sleeved Barrel |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Sub Brand | Pan-Term |
Panduit D14-250-M | Loose Piece Disconnect | UPC - 07498382203 Data Sheets
| Part Drawings | Non-Insulated Female Disconnect-A41304 | Download and View |
| Cross References | Terminal Part Consolidation (replacement part cross reference) | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit D14-250-M | Loose Piece Disconnect | UPC - 07498382203 Environmental Information
| Panduit's RoHS Statement | Download and View |
