Brand: Panduit
|
SKU:
10044058

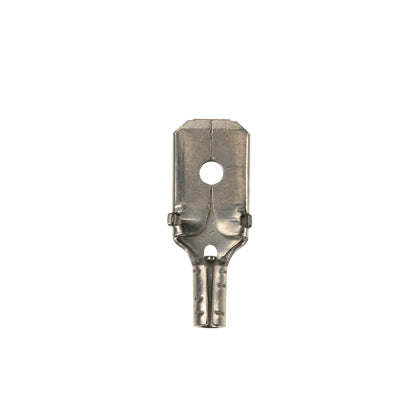

Panduit D14-250MB-M | Loose Piece Disconnect | UPC - 07498382216
Regular price
$207.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit D14-250MB-M | Loose Piece Disconnect | UPC - 07498382216
Regular price
$207.24
Unit price
Description
Description
Panduit Pan-Term Male Tab Disconnect, Loose Piece Non-Insulated Vibration-Resistant, Series: D-MB, Stranded Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Standard Barrel, 2000 VAC, Specifications: 9/32 in L Wire Strip, 302 deg F, Brass/Copper, Metallic, Nickel Plated, 0.69 in L x 0.25 in W Dimensions
- The vibration-resistant male tab disconnect in metallic brass helps overcome the failures caused by high vibration
- Male tab can be inserted and removed from the female disconnect without the use of tools for lower installed cost
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Barrel of terminal internally beveled to provide quick and easy wire insertion
Panduit Panduit D14-250MB-M | Loose Piece Disconnect | UPC - 07498382216 Key Specs
| Disconnect Type | Male Tab Disconnect |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Maximum Voltage (V) | 2000 |
| Base Material | Brass |
| Finish/Coating | Nickel |
| Color Code | Metallic |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Sub Brand | Pan-Term |
| Overall Height (In.) | 0.3 |
| Overall Height (mm) | 0.8 |
Panduit Panduit D14-250MB-M | Loose Piece Disconnect | UPC - 07498382216 Environmental Information
| Panduit's RoHS Statement | Download and View |
