Brand: Panduit
|
SKU:
PAN-D18-187-C

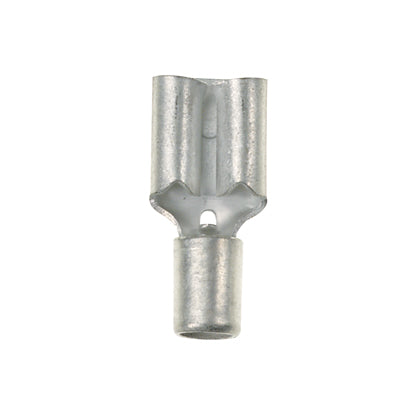

Panduit D18-187-C | Loose Piece Disconnect | UPC - 07498364585
Regular price
$68.40
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit D18-187-C | Loose Piece Disconnect | UPC - 07498364585
Regular price
$68.40
Unit price
Brand: Panduit
|
SKU:
PAN-D18-187-C
Regular price
$68.40
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Female Disconnect, Vibration Resistant, Series: D Series, Stranded Conductor, 22 to 18 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Sleeve Barrel, Crimp Terminal, 2000 VAC, 9/32 in L Wire Strip, Standard Barrel Configuration, 302 deg F, Brass, Metallic, Tin Plated, 0.58 in L x 0.23 in W x 0.1 in H, Non-Insulated
Features + Benefits
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit D18-187-C | Loose Piece Disconnect | UPC - 07498364585 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Non-Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.19 |
| Tab Size (mm) | 4.8 |
| Standards Met | UL Recognized, UL Listed 20H3 E78522; CSA Certified LR31212 , C22.2 No.153 |
| Maximum Voltage (V) | 2000 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Metallic |
| Barrel Type | Sleeved Barrel |
| Maximum Operating Temperature (°C) | 150 |
| Maximum Operating Temperature (°F) | 302 |
| Sub Brand | Pan-Term |
Panduit D18-187-C | Loose Piece Disconnect | UPC - 07498364585 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - D18-187-C Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A4130508 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit D18-187-C | Loose Piece Disconnect | UPC - 07498364585 Environmental Information
| Panduit's RoHS Statement | Download and View |
