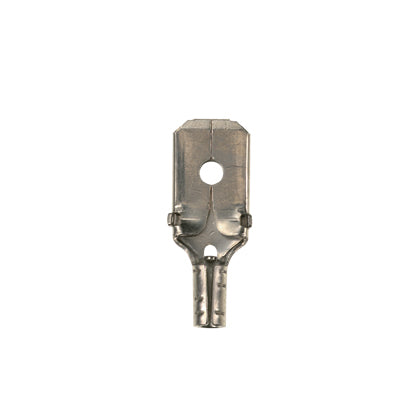

Panduit D18-250MB-C | Loose Piece Disconnect | UPC - 07498382217

The vibration resistant male tab disconnect in metallic brass helps overcome the failures caused by high vibration. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.69" (17.4 mm) long and 0.25" (6.4 mm) wide. The disconnect is non-insulated, nickel-plated, has a standard barrel configuration and a butted seam barrel. It comes in bottles of 100.

---

Panduit Panduit D18-250MB-C | Loose Piece Disconnect | UPC - 07498382217 Key Specs

Disconnect Type	Male Tab Disconnect
Insulation Material	Non-Insulated
Maximum Copper Conductor Size (AWG)	#18
Maximum Wire Size (AWG)	#18
Minimum Wire Size (AWG)	#22
Minimum Copper Conductor Size (AWG)	#22
Wire Strip Length (In.)	0.28
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.25
Tab Size (mm)	6.3
Maximum Voltage (V)	2000
Base Material	Brass
Finish/Coating	Nickel
Color Code	Metallic
Maximum Operating Temperature (°C)	150
Maximum Operating Temperature (°F)	302
Sub Brand	Pan-Term
Overall Height (In.)	0.3
Overall Height (mm)	0.8
