Brand: Panduit
|
SKU:
989474-BEL

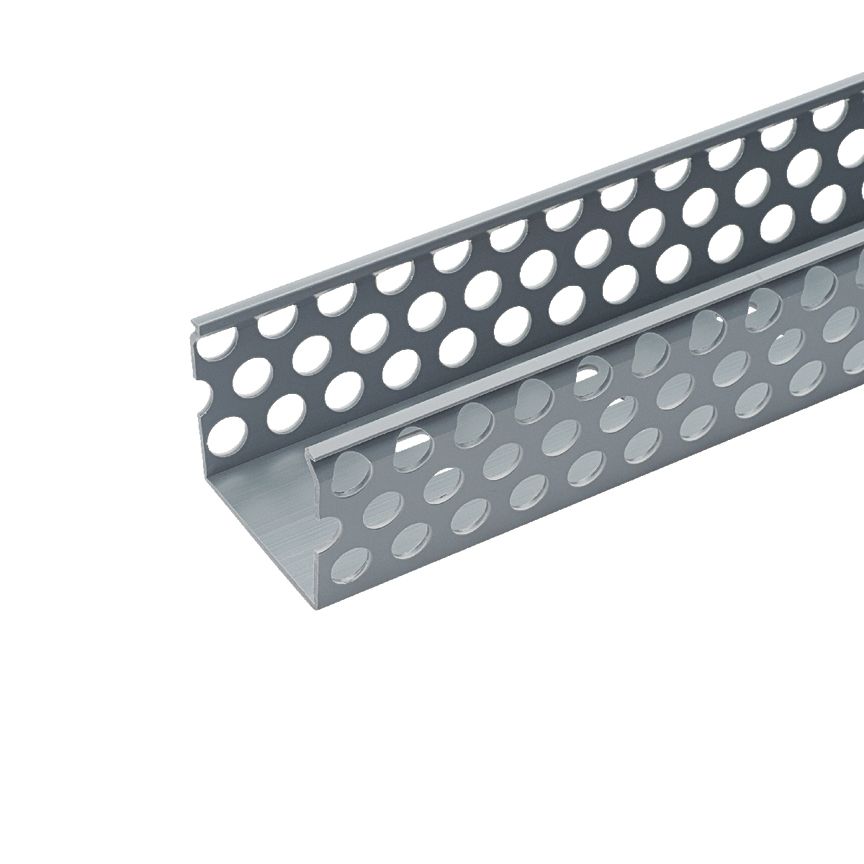

Panduit D2X4LG6 | Panduct D2X4LG6 Base Wiring Duct
Regular price
$71.53
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit D2X4LG6 | Panduct D2X4LG6 Base Wiring Duct
Regular price
$71.53
Unit price
Description
Description
Panduit D2X4LG6 | Panduct D2X4LG6 Base Wiring Duct
The D2X4LG6 Panduct Lead-Free PVC Round Hole Wiring Duct is designed with multiple rows of holes to retain and support wire at variable heights and positions. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Mounting holes provided. Lead-free PVC. 2" x 4" (50.8 mm x 101.6 mm) and 6' (1.83 m) long. Cover sold separately. Color Light Gray.
Specifications
Specifications
Panduit - D2X4LG6 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - D2X4LG6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | D2X4LG6 |
| Item Description | Panduct D2X4LG6 Base Wiring Duct |
| Application | Round hole design has multiple rows of holes to retain and support wire at variable heights and positions. |
| Product Type | Base Wiring Duct |
| Color | Light Gray |
| Cover Part Number | C2LG6 |
| Flammability Rating | UL94V-0 |
| Includes | Base Only |
| Standards Met | RoHS Compliant, UL Recognized, CE Compliant; CSA Approved |
| Material | PVC |
| Material Properties | Lead-Free |
| Mount Method | Mounting Holes |
| Measurement System | Imperial |
| Wiring Duct Style | Round Hole Wiring Duct |
| Overall Height (In.) | 4.1 |
| Overall Height (mm) | 104.1 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 2.25 |
| Overall Width (mm) | 57.2 |
| Sub Brand | Panduct |
| Part Features | Round hole design retains and supports wires at variable heights and positions to enhance wire management. Smooth round edges to prevent wire abrasion. Base scoreline for easy removal for T-junctions and right angles, saving installation time. |
Brand Name - D2X4LG6 - Package Information
| UPC | 07498321265 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.2755 |
| Standard Ctn. Quantity | 60 |
| Standard Ctn. Volume (cf) | 2.7551 |
Brand Name - D2X4LG6 - Videos
| Video URL 1 | Click to View |
|---|---|
| Video URL 2 | Click to View |
