Brand: Panduit
|
SKU:
310102

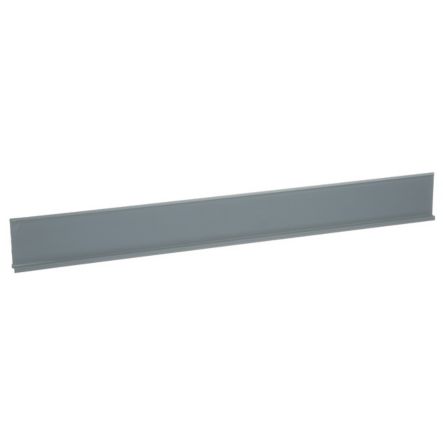

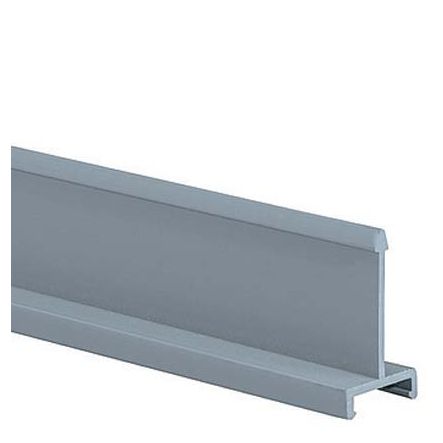

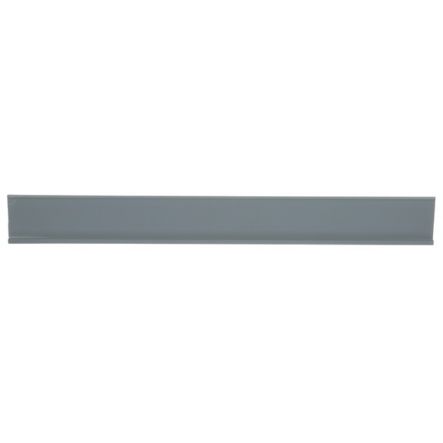

Panduit D3H6 Solid Duct Divider Wall, Panduct(R), Lead Free PVC, 3"; H X 6’;, Light Gray
Regular price
$37.86
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit D3H6 Solid Duct Divider Wall, Panduct(R), Lead Free PVC, 3&...
Regular price
$37.86
Unit price
Description
Description
Panduit D3H6 | Panduct D3H6 Solid Divider Wall
Panduct solid divider wall, 3.00" nominal duct height, 6' length, PVC, light gray.
Panduit - D3H6 - Features
- Wiring duct divider wall can be mounted inside any type of Panduit(TM) PVC wiring duct to create multiple channels
- Simply install the divider wall base when mounting the duct and snap the divider wall onto the mounting base, DB-C
- All versions snap onto DB-C mounting base
- Divider wall heights 2"; and greater have a scoreline feature allowing sections to be removed leaving a smooth edge
- Meets UL508/508A insulation material requirement for barrier between conductors
- UL 94 flammability rating of V-0
Specifications
Specifications
Panduit - D3H6 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct Accessories
Panduit - D3H6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | D3H6 |
| Item Description | Panduct D3H6 Solid Divider Wall |
| Application | Wiring Duct Accessory - Solid Divider Wall |
| Note | For installation of the divider, must use part number DB-C |
| Product Type | Solid Divider Wall |
| Color | Light Gray |
| Compatible Duct Height (In.) | 3 |
| Compatible Duct Height (mm) | 76.2 |
| Flammability Rating | UL94 V-0 |
| Sub Brand | Panduct |
| For Use With | PVC Wiring Duct |
| Material | PVC |
| Standards Met | RoHS Compliant |
| Overall Height (In.) | 2.74 |
| Overall Height (mm) | 69.5 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 19 |
Panduit - D3H6 - Package Information
| UPC | 07498334879 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.0649 |
| Standard. Ctn. Quantity | 120 |
| Standard. Ctn. Volume (cf) | 1.2985 |
