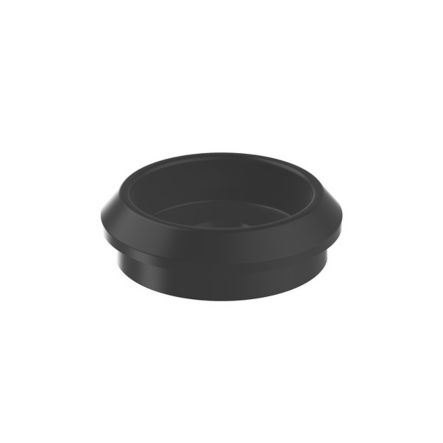

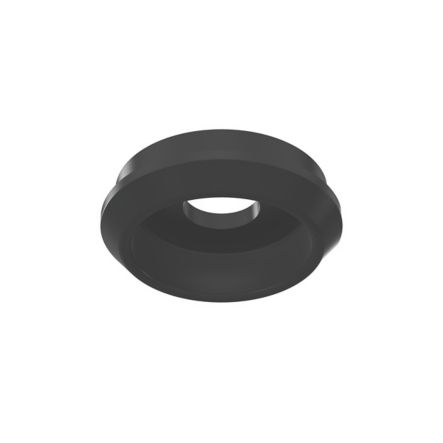

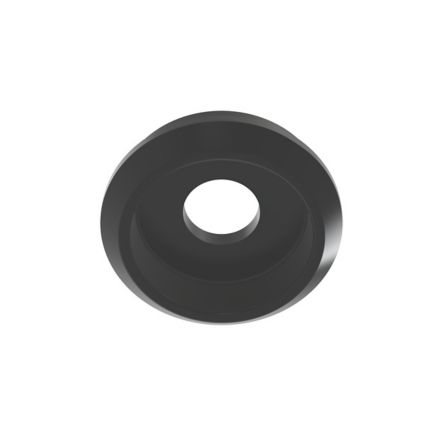

Panduit DB-C Duct Divider Wall Mounting Base, Patch Cord, Pack of 100
Description
Description
The DB-C Panduct Divider Wall Mounting Base can be mounted inside any type of Panduit PVC wiring duct to create multiple channels. Simply install the divider wall base when mounting the duct and snap the divider wall onto the mounting base. Use Panduit NR1 or #8, #10, M4, or M5 fasteners. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). Polycarbonate. 0.19" x .65" (4.8 mm x 16.5mm). Color Black. 100 piece package.
Panduit - DB-C - Features
- Installed when mounting duct
- Acts as a shroud around the screw to protect wires from abrasion
Specifications
Specifications
Panduit - DB-C - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct Accessories
Panduit - DB-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DB-C |
| Item Description | Panduct DB-C Divider Wall Mounting Base, Black, PK100 |
| Application | Installation of Wiring Duct Divider Walls |
| Note | Use for installation of the divider walls in any type of PVC wiring duct products for channel separation; Polycarbonate material |
| Product Type | Divider Wall Mounting Base |
| Sub Brand | Panduct |
| Color | Black |
| Flammability Rating | UL94 V-2 |
| Standards Met | UL508/508A; RoHS Compliant |
| Screw Size | #8, #10, M4 or M5 |
Panduit - DB-C - Package Information
| UPC | 07498334877 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0230 |
| Standard. Ctn. Quantity | 1000 |
| Standard. Ctn. Volume (cf) | 0.2298 |
Panduit - DB-C - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
