Brand: Panduit
|
SKU:
193943

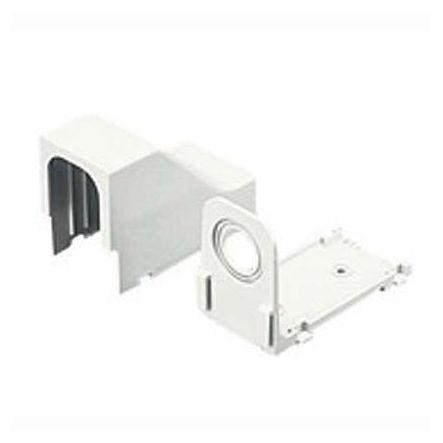

Panduit DCEFXWH-X Drop Ceiling, Entrance End Power Rated, 1";BRC Fitting for LD, LDPH3,5,10, LDS3,5, White, Pack of 10
Regular price
$115.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DCEFXWH-X Drop Ceiling, Entrance End Power Rated, 1";B...
Regular price
$115.03
Unit price
Description
Description
Panduit DCEFXWH-X | Surface Raceway, LD/LDPH, , Entr. End Fitng, White
The power rated drop ceiling/entrance end fitting is used with LD10 and LDPH10 raceway. PVC, Length 4.1 in, White
One inch bend radius fittings are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fiber optic cabling systems
Specifications
Specifications
Panduit - DCEFXWH-X - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - DCEFXWH-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DCEFXWH-X |
| Item Description | Surface Raceway, LD/LDPH, , Entr. End Fitng, White |
| Note | Compatible with LDPH10. Using this part with LDPH3 and LDPH5 will cause a gap between the fitting and the raceway. |
| Product Type | Power Rated Fittings |
| Sub Brand | Pan-Way |
| Color | White |
| Fitting Type | Entrance End/Drop Ceiling |
| For Use With | LD3, LDPH3, LDS3, LD5, LDPH5, LDS5, LD10, LDPH10 |
| Material | ABS |
| Mount Method | Screw-On |
| Raceway Type | Power Rated |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant. |
| Overall Height (In.) | 2.93 |
| Overall Height (mm) | 74.4 |
| Overall Length (In.) | 4.1 |
| Overall Length (mm) | 104.2 |
| Overall Width (In.) | 2.12 |
| Overall Width (mm) | 53.8 |
| Application | Pan-Way LDS Profile Raceway is a Single Channel Non-Hinged Raceway Which Provides Solutions For Routing of Power or Low Voltage Data and Fiber Optic Cabling Along Perimeter Walls. Lds Raceway is the Only Non-Metallic Raceway that is Bendable in Low Volt |
| Part Features | Power-rated drop ceiling/entrance end fitting. |
Panduit - DCEFXWH-X - Package Information
| UPC | 07498356468 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.3518 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - DCEFXWH-X - Videos
| Video 1 | Click to View |
|---|
