Brand: Panduit
|
SKU:
126377-EA

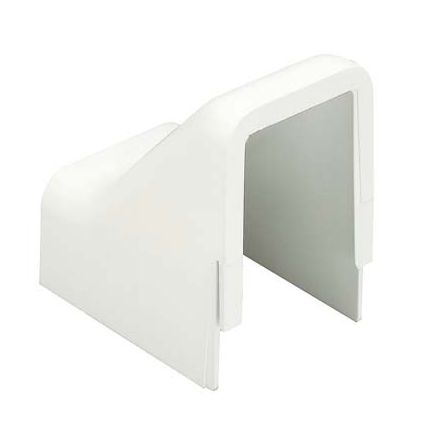

Panduit DCF10EI-X | LD10 Low Voltage Drop Ceiling, Entrance End Fitting, Electric Ivory, Pack of 10
Regular price
$4.06
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DCF10EI-X | LD10 Low Voltage Drop Ceiling, Entrance End Fit...
Regular price
$4.06
Unit price
Description
Description
Panduit DCF10EI-X | Surface Raceway, LD10 Low Volt. , Entr. End Fitng, Elec Ivory
The drop ceiling/entrance end fitting allows for running cable directly from the ceiling. It is designed to be used with the LD10 Surface Raceway. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It features a snap-on installation, is made of ABS plastic and is Electric Ivory.
Drop ceiling/entrance end fitting for use with LD10 raceway.
Specifications
Specifications
Panduit - DCF10EI-X - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - DCF10EI-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DCF10EI-X |
| Item Description | Surface Raceway, LD10 Low Volt. , Entr. End Fitng, Elec Ivory |
| Product Type | Low Voltage Fittings |
| Sub Brand | Pan-Way |
| Color | Electric Ivory |
| Fitting Type | Entrance End/Drop Ceiling |
| For Use With | LD10 |
| Material | ABS |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL Compliant. |
| Overall Height (In.) | 2.25 |
| Overall Height (mm) | 57.2 |
| Overall Length (In.) | 2.25 |
| Overall Length (mm) | 57.1 |
| Overall Width (In.) | 1.6 |
| Overall Width (mm) | 40.6 |
| Application | Pan-Way LDS Profile Raceway is a Single Channel Non-Hinged Raceway Which Provides Solutions For Routing of Power or Low Voltage Data and Fiber Optic Cabling Along Perimeter Walls. Lds Raceway is the Only Non-Metallic Raceway that is Bendable in Low Volt |
| Part Features | Drop ceiling/entrance end fitting for low voltage applications only. |
Panduit - DCF10EI-X - Package Information
| UPC | 07498325175 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.1275 |
| Standard. Ctn. Quantity | 50 |
| Standard. Ctn. Volume (cf) | 0.6375 |
Panduit - DCF10EI-X - Videos
| Video 1 | Click to View |
|---|
