Panduit DCF10WH-X | LD10 Low Voltage Drop Ceiling, Entrance End Fit...
Regular price
$4.06
Unit price
Brand: Panduit
|
SKU:
193484
Regular price
$4.06
Unit price
Description
Description

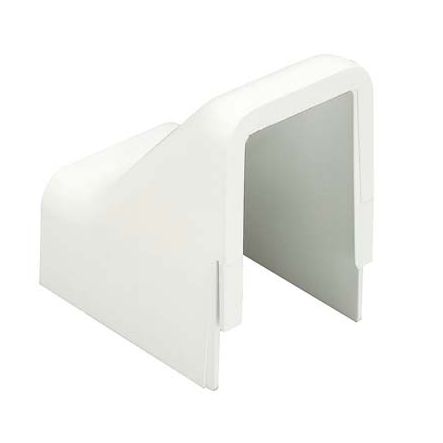

Panduit DCF10WH-X | Surface Raceway, LD10 Low Volt. , Entr. End Fitng, White
The drop ceiling/entrance end fitting allows for running cable directly from the ceiling. It is designed to be used with the LD10 Surface Raceway. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It features a snap-on installation, is made of ABS plastic and is White.
Specifications
Specifications
Panduit - DCF10WH-X - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - DCF10WH-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DCF10WH-X |
| Item Description | Surface Raceway, LD10 Low Volt. , Entr. End Fitng, White |
| Product Type | Low Voltage Fittings |
| Sub Brand | Pan-Way |
| Color | White |
| Fitting Type | Entrance End/Drop Ceiling |
| For Use With | LD10 |
| Material | ABS |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL Compliant. |
| Overall Height (In.) | 2.25 |
| Overall Height (mm) | 57.2 |
| Overall Length (In.) | 2.25 |
| Overall Length (mm) | 57.1 |
| Overall Width (In.) | 1.6 |
| Overall Width (mm) | 40.6 |
| Application | Pan-Way LD Surface Raceways are Designed to Provide Easy and Economical Solutions For Routing any Low Voltage Cable Along Smooth and Clean Perimeter Walls, Baseboards or Ceilings. This Raceway is a Perfect Solution for Schools, Hospitals, Offices, Homes |
| Part Features | Drop ceiling/entrance end fitting for low voltage applications only. |
Panduit - DCF10WH-X - Package Information
| UPC | 07498325333 |
|---|---|
| Standard Pkg. Qty. | 10 |
| Standard Package Volume (cf) | 0.1215 |
| Standard Ctn. Qty. | 50 |
| Standard Ctn. Volume (cf) | 0.6073 |
