Panduit DCF3IW-X | Surface Raceway, LD3 Drop Ceiling Fitting, Low V...
Regular price
$30.02
Unit price
Brand: Panduit
|
SKU:
131153
Regular price
$30.02
Unit price
Description
Description

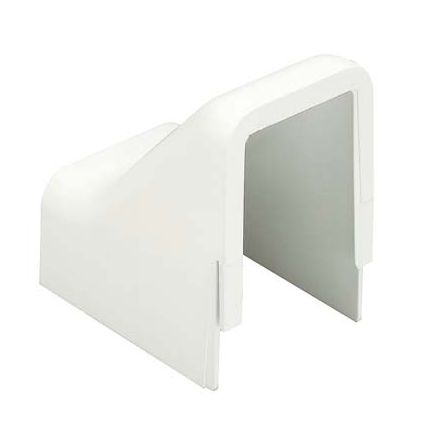

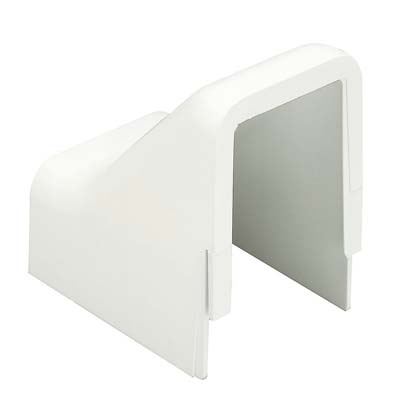

Panduit DCF3IW-X | Surface Raceway, LD3 Drop Ceiling Fitting, Low Voltage, Off White
Our drop ceiling/entrance end fitting provides a seamless way to bring low voltage cable from ceiling into single channel raceway for a clean look.
Low voltage drop ceiling/entrance end fitting for use with LD3 raceway, Off White, ABS, Length 3.42 in.
Panduit Pan-Way Drop Ceiling/Entrance End Fitting, Low Voltage, Snap-On Mounting, For Use With: Pan-Way LD3 Series Surface Raceway System, ABS, Off-White, 3.42 in L x 1.6 in W x 2.25 in H Dimensions
Panduit - DCF3IW-X - Features
- One-piece hinged design
- 1 in bend radius control fittings
- Adhesive backing
Specifications
Specifications
Panduit - DCF3IW-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DCF3IW-X |
| Color | White |
| Components | Fittings |
| Type | Non-Metallic |
| UNSPSC Code | 39131709 |
| Product Type | Low Voltage Fitting |
| Sub Brand | Pan-Way |
| Color | Off White |
| Fitting Type | Entrance End/Drop Ceiling |
| For Use With | LD3 |
| Material | ABS |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | UL94V-0, FT4, Meets TIA/EIA Standards |
| Overall Length (In.) | 3.42 |
| Overall Length (mm) | 86.7 |
| Overall Width (In.) | 1.6 |
| Overall Width (mm) | 40.6 |
| Overall Height (In.) | 2.25 |
| Overall Height (mm) | 57.2 |
| Application | Surface Raceway products provide flexibility for routing, protecting, and consealing Low-Voltage Data, Fiber Optic and Electrical Wiring within any Enterprise Environment |
| Part Features | 1 bend radius control fittings, One-piece hinged design, Adhesive backing, Available in different sizes & lengths, Non-metallic construction, Distinct colors and Full selection of fittings and surface mount boxes. |
| UPC | 07498326242 |
Panduit - DCF3IW-X - Videos
| Panduit DCF3IW-X Video 1 | Click to View |
|---|
