Panduit DIRLC3210S17W | NDInletDuct, CiscoCat6807, 3/2RU, BLK, PK3
Description
Description
Maximize Cisco switch cooling efficiency and save energy with the DI Net-Direct air inlet duct. Channels cold air to intake, reducing fan power consumption and extending equipment life.

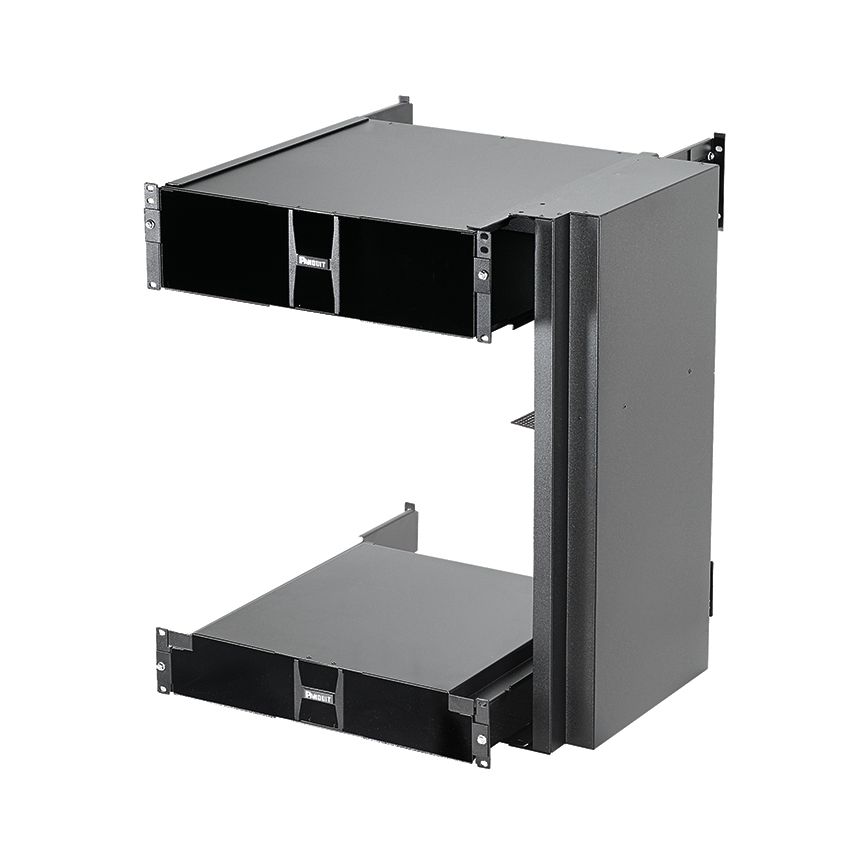

The Net-Direct Air Inlet Duct provides cold airflow directly into Cisco Catalyst 6807-XL switch intakes from above, below and the side. Not only does it require no energy to operate, but it also reduces fan power consumption by up to 250W, improving en ergy efficiency and reliability for increased cost savings. 3RU (top) 2RU (bottom), Black, 3pc - No blanking panels.
The thermal inlet duct shall be designed to be compatible with the Cisco catalyst 6807-XL switch using Computational Fluid Dynamics (CFD) modelling and verified via operational testing. This is a right-to-left airflow switch. The inlet duct shall occupy 15 RU, consist of one 3 RU (top) and one 2 RU (bottom) inlet ducts, 10 RU required for the Cisco catalyst 6807-XL switch and a side duct to feed cool air from the cold aisle to the switch's side inlet. The modular duct shall be capable of being installed in a retrofit application without disrupting existing in-cabinet equipment and cabling.
Panduit Net-Direct Air Inlet Duct, For Use With: Cisco 6807/6807-XL Catalyst Switches, Black, 22.11 in W x 22.1 in D x 26.26 in H
Panduit - DIRLC3210S17W - Features
- Passive airflow no additional moving parts or power required for a more reliable, efficient, economical and environmentally friendly system
- Certified performance designed and validated thermal performance by Panduit
- Physical separation between inlet and exhaust airflow
- Inlet duct design ensures the cabinet is containment ready for vertical exhaust ducting (VED) and aisle containment
- Maximized space utilization
- Energy efficiency provides cool air to the switch resulting in lower fan speed reducing fan power consumption and improving reliability
- Integral bonding to cabinet cabinets and accessories are single point bonded, providing a safe and reliable network, while reducing installation costs
- Day one or two installation eliminates the requirement to replace or disturb existing cabinets, equipment and infrastructure for lower capital expenditures and minimized risk
- Easy access allows access to the power supplies and fan modules minimizing network downtime
- Not only does it require no energy to operate, but it also reduces fan power consumption by up to 250 W, improving energy efficiency and reliability for increased cost savings
Specifications
Specifications
Panduit - DIRLC3210S17W - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DIRLC3210S17W |
| UNSPSC Code | 43222500 |
| Product Type | Air Inlet Duct |
| Sub Brand | Net-Direct |
| Overall Depth (In.) | 22.1 |
| Overall Depth (mm) | 561.5 |
| Overall Width (In.) | 20.87 |
| Overall Width (mm) | 530.2 |
| Overall Height (In.) | 18.3 |
| Overall Height (mm) | 465 |
| Color | Black |
| Standards Met | RoHS Compliant |
| UPC | 07498307234 |
Panduit - DIRLC3210S17W - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
