Panduit DNF10-250FI-D | Pan-Term Dnf10-250Fi-D Disconnect, Yellow, Nylon, 10-12 Awg, 0.250 X 0.032" Tab
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNF10-250FI-D | Pan-Term Dnf10-250Fi-D Disconnect, Yellow, ...
Regular price
$1.46
Unit price
Description
Description
Panduit DNF10-250FI-D | Pan-Term Dnf10-250Fi-D Disconnect, Yellow, Nylon, 10-12 Awg, 0.250 X 0.032" Tab

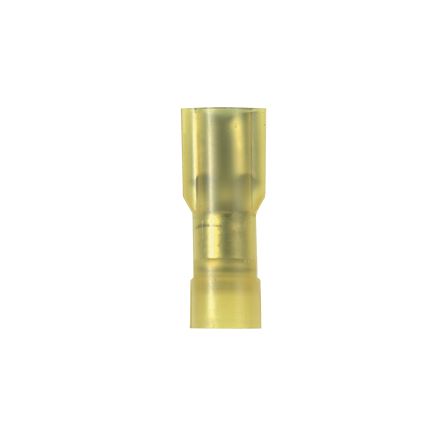

Panduit DNF10-250FI-D Female Disconnect
Panduit - DNF10-250FI-D - Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Barrel design with larger outside diameter for use with more common hand tools
- UL and CSA rated up to 600 V per UL 310
Specifications
Specifications
Panduit - DNF10-250FI-D - Product Categories
- Wire Termination
- Disconnects
Panduit - DNF10-250FI-D - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNF10-250FI-D |
| Item Description | Pan-Term Dnf10-250Fi-D Disconnect, Yellow, Nylon, 10-12 Awg, 0.250 X 0.032" Tab |
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Yellow |
| Barrel Type | Funnel |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Wire Insulation Diameter (In.) | 0.22 |
| Maximum Wire Insulation Diameter (mm) | 5.6 |
| Overall Height (In.) | 0.27 |
| Overall Height (mm) | 6.9 |
| Overall Length (In.) | 0.95 |
| Overall Length (mm) | 24.1 |
| Overall Width (In.) | 0.36 |
| Overall Width (mm) | 9.1 |
| Tongue Angle | Straight |
| Packaging Type | Box |
| Product Type | Disconnect |
| For Use With | CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Maximum Voltage (kV) | 0.6 |
| Part Features | • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Fully insulated design provides protection from electrical shorts • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • Barrel design with larger outside diameter for use with more common hand tools • UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C) • UL and CSA rated up to 600 V per UL 310 |
Panduit - DNF10-250FI-D - Package Information
| UPC | 07498382629 |
|---|---|
| Standard Package Quantity | 500 |
| Standard Package Volume (cf) | 0.5261 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
