Panduit DNF10-250FIMB-Q | Pan-Term DNF10-250FIMB-Q Loose Piece Disc...
Description
Description

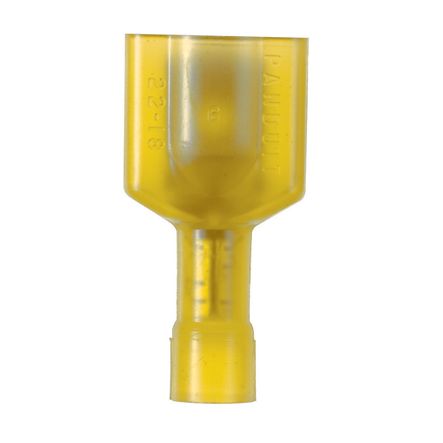

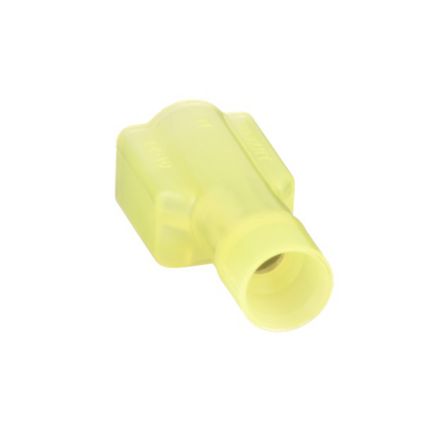

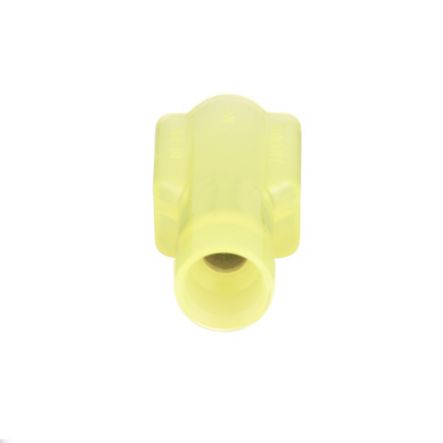

The vibration resistant male tab disconnect is made of copper and is nickel-plated. It is fully insulated in a yellow, oversized nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 12-10 AWG (4.0-6.0 mm²). It is 0.96" (24.4 mm) long and 0.22" (5.6 mm) wide. The disconnect has a standard barrel configuration and a butted seam barrel. It comes in bottles of 25.
Panduit DNF10-250FIMB-Q - DISCONNECT - MALE DISC NYLON INSULATED TERM
Specifications
Specifications
Panduit - DNF10-250FIMB-Q - Product Categories
- Wire Termination
- Disconnects
Panduit - DNF10-250FIMB-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNF10-250FIMB-Q |
| Item Description | Pan-Term DNF10-250FIMB-Q Loose Piece Disconnect |
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Copper |
| Finish/Coating | Nickel-Plated |
| Color Code | Yellow |
| Barrel Type | Standard |
| Flammability Rating | UL94-HB |
| Insulation Diameter (In.) | 0.22 |
| Insulation Diameter (mm) | 5.6 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size (mm²) | 6 |
| Minimum Metric Conductor Size (mm²) | 4 |
| Maximum Wire Insulation Diameter (In.) | 0.22 |
| Maximum Wire Insulation Diameter (mm) | 5.6 |
| Overall Length (In.) | 0.96 |
| Overall Length (mm) | 24.4 |
| Overall Width (In.) | 0.45 |
| Overall Width (mm) | 11.4 |
| Tongue Angle | Straight |
| Seam Type | Butted |
| Packaging Type | Bottle |
| Product Type | Disconnect |
| For Use With | CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Maximum Voltage (kV) | 0.6 |
| Part Features | • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Fully insulated design provides protection from electrical shorts • Internal barrel serrations assure good wire contact and maximum tensile strength • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • Coupler, male, and female parts sold separately • UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C) • UL and CSA rated up to 600 V per UL 310 |
Panduit - DNF10-250FIMB-Q - Package Information
| UPC | 07498311902 |
|---|---|
| Standard Package Quantity | 25 |
| Standard Package Volume (cf) | 0.0099 |
| Standard Ctn. Quantity | 125 |
| Standard Ctn. Volume (cf) | 0.0493 |
