Brand: Panduit
|
SKU:
1041794

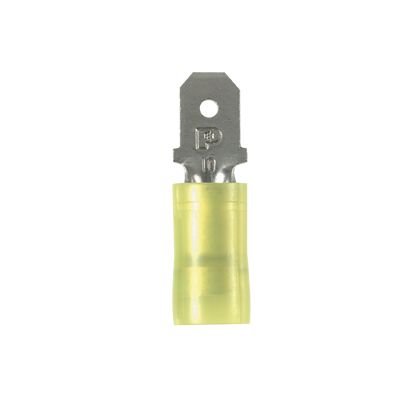

Panduit DNF10-250M-D | Loose Piece Disconnect | UPC - 07498382772
Regular price
$363.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNF10-250M-D | Loose Piece Disconnect | UPC - 07498382772
Regular price
$363.64
Unit price
Description
Description
Panduit Pan-Term Male Tab Disconnect, Insulated Loose Piece Vibration-Resistant, Series: DNF-M, Stranded Conductor, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve/Standard Barrel, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.23 in Dia Maximum Nylon Insulation, 221 deg F, Brass/Copper, Yellow, Nickel Plated, 1.03 in L x 0.25 in W Dimensions
Features + Benefits
Panduit DNF10-250M-D Key Specs
| Disconnect Type | Male Tab Disconnect |
| Insulation Material | Nylon-Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Maximum Voltage (V) | 600 |
| Base Material | Copper |
| Finish/Coating | Nickel |
| Color Code | Yellow |
| Barrel Type | Grip Sleeve |
| Flammability Rating | HB |
| Insulation Diameter (In.) | 0.22 |
| Insulation Diameter (mm) | 5.6 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Pan-Term |
| Maximum Wire Insulation Diameter (In.) | 0.23 |
| Maximum Wire Insulation Diameter (mm) | 5.8 |
| Overall Height (In.) | 0.03 |
| Overall Height (mm) | 0.8 |
| Overall Length (In.) | 1.03 |
| Overall Length (mm) | 26.2 |
| Overall Thickness (In.) | 0.03 |
| Overall Thickness (mm) | 0.8 |
Panduit DNF10-250M-D Data Sheets
| Part Drawings | Part Drawing - PDF - A4132208 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
