Brand: Panduit
|
SKU:
10044065

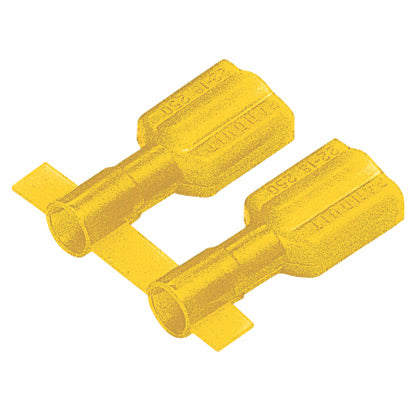

Panduit DNF10250FIBC-2K | Disconnects on a Reel | UPC - 07498382907
Regular price
$1,319.89
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNF10250FIBC-2K | Disconnects on a Reel | UPC - 07498382907
Regular price
$1,319.89
Unit price
Description
Description
Panduit Reel Smart Female Disconnect, Vibration-Resistant, Series: DNF-FIB, Stranded Conductor, 12 to 10 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Crimp Terminal, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.22 in Dia Maximum Nylon Insulation, 221 deg F, Brass, Yellow, TiN Plated, 0.96 in L x 0.35 in W x 0.23 in H Dimensions, Fully Insulated
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit Panduit DNF10250FIBC-2K | Disconnects on a Reel | UPC - 07498382907 Key Specs
| Disconnect Type | Female Disconnect-Compressor |
| Insulation Material | Nylon-Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #10 |
| Maximum Wire Size (AWG) | #10 |
| Minimum Wire Size (AWG) | #12 |
| Minimum Copper Conductor Size (AWG) | #12 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Yellow |
| Flammability Rating | HB |
| Insulation Diameter (In.) | 0.22 |
| Insulation Diameter (mm) | 5.6 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Reel Smart |
Panduit Panduit DNF10250FIBC-2K | Disconnects on a Reel | UPC - 07498382907 Environmental Information
| Panduit's RoHS Statement | Download and View |
