Panduit DNF14-110-E | Loose Piece Disconnect | UPC - 07498336434

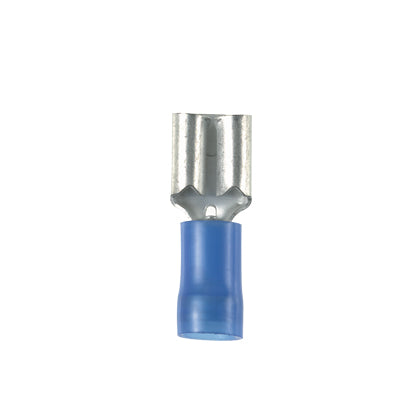

The vibration resistant female disconnect is made brass and is tin-plated. It is barrel insulated in blue, nylon. It has a tab size of 0.110 x 0.032" (2.8 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.75" (19.1 mm) long and 0.15" (3.8 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bags of 20.

---

Panduit Panduit DNF14-110-E | Loose Piece Disconnect | UPC - 07498336434 Key Specs

Disconnect Type	Female Disconnect-Compressor
Insulation Material	Nylon-Fully Insulated
Maximum Copper Conductor Size (AWG)	#14
Maximum Wire Size (AWG)	#14
Minimum Wire Size (AWG)	#16
Minimum Copper Conductor Size (AWG)	#16
Wire Strip Length (In.)	0.28
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.11
Tab Size (mm)	2.8
Maximum Voltage (V)	300
Base Material	Brass
Finish/Coating	Tinned
Color Code	Blue
Barrel Type	Grip Sleeve
Flammability Rating	HB
Insulation Diameter (In.)	0.16
Insulation Diameter (mm)	4.1
Maximum Operating Temperature (°C)	90
Maximum Operating Temperature (°F)	194
