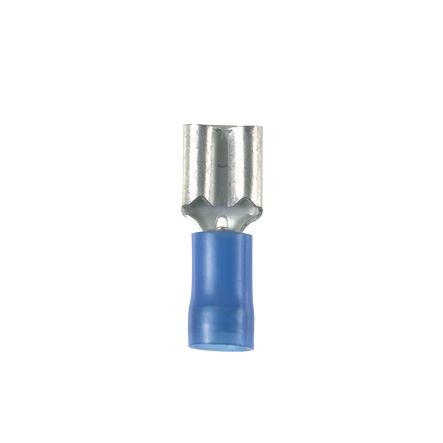

Panduit DNF14-110-M | Pan-Term Loose Piece Disconnect
Description
Description
Ensure reliable performance with our nylon-insulated female disconnect, ideal for wiring various electrical projects.
Panduit Pan-Term Female Disconnect, Loose Piece Vibration-Resistant, Series: DNF, Stranded Conductor, 16 to 14 AWG Conductor, 0.11 in W x 0.032 in THK Tab, Funnel Entry/Serrated/Sleeve Barrel, Crimp Terminal, 300 VAC, Specifications: 9/32 in L Wire Strip, 0.162 in Dia Maximum Nylon Insulation, 194 deg F, Brass, Blue, TiN Plated, 0.75 in L x 0.15 in W x 0.08 in H Dimensions, Insulated
Panduit - DNF14-110-M - Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Specifications
Specifications
Panduit - DNF14-110-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNF14-110-M |
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #16 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.110 x 0.032 |
| Tab Size (mm) | 2.8 x 0.8 |
| Maximum Voltage (V) | 300 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94-HB |
| Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 90 |
| Maximum Operating Temperature (°F) | 194 |
| UPC | 07498382651 |
Panduit - DNF14-110-M - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
