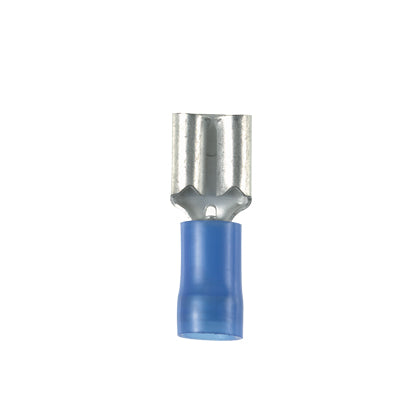

Panduit DNF14-111-C | Loose Piece Disconnect | UPC - 07498382652
Regular price
$118.91
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNF14-111-C | Loose Piece Disconnect | UPC - 07498382652
Regular price
$118.91
Unit price
Description
Description
Panduit Pan-Term Female Disconnect, Loose Piece Vibration-Resistant, Series: DNF, Stranded Conductor, 16 to 14 AWG Conductor, 0.11 in W x 0.02 in THK Tab, Funnel Entry/Serrated/Sleeve Barrel, Crimp Terminal, 300 VAC, Specifications: 9/32 in L Wire Strip, 0.162 in Dia Maximum Nylon Insulation, 194 deg F, Brass, Blue, TiN Plated, 0.75 in L x 0.15 in W x 0.07 in H Dimensions, Insulated
Features + Benefits
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit DNF14-111-C Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.11 |
| Tab Size (mm) | 2.8 |
| Maximum Voltage (V) | 300 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Blue |
| Barrel Type | Grip Sleeve |
| Flammability Rating | HB |
| Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 90 |
| Maximum Operating Temperature (°F) | 194 |
