Brand: Panduit
|
SKU:
PAN-DNF14-187-C

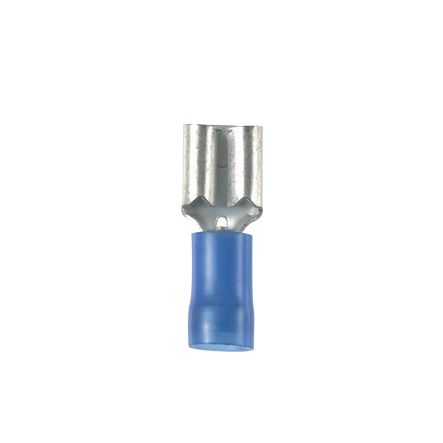

Panduit DNF14-187-C | Loose Piece Disconnect | UPC - 07498382714
Regular price
$137.32
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNF14-187-C | Loose Piece Disconnect | UPC - 07498382714
Regular price
$137.32
Unit price
Brand: Panduit
|
SKU:
PAN-DNF14-187-C
Regular price
$137.32
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Female Disconnect, Vibration Resistant, Series: DNF, Stranded Conductor, 16 to 14 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Sleeve Barrel, Crimp Terminal, 300 VAC, 9/32 in L Wire Strip, 0.162 in Dia Maximum Nylon Insulation, Funnel Entry Barrel Configuration, 194 deg F, Brass, Blue, Tin Plated, 0.76 in L x 0.23 in W x 0.1 in H, Insulated
Features + Benefits
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit DNF14-187-C | Loose Piece Disconnect | UPC - 07498382714 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.19 |
| Tab Size (mm) | 4.8 |
| Standards Met | UL 310 Listed |
| Maximum Voltage (V) | 300 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Blue |
| Barrel Type | Grip Sleeve |
| Flammability Rating | HB |
| Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 90 |
Panduit DNF14-187-C | Loose Piece Disconnect | UPC - 07498382714 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - DNH18-250FIM-Q Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A4131206 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit DNF14-187-C | Loose Piece Disconnect | UPC - 07498382714 Environmental Information
| Panduit's RoHS Statement | Download and View |
