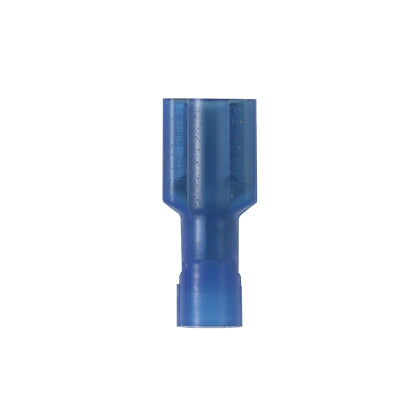

Panduit DNF14-187FIB-C | Pan-Term Loose Piece Disconnect
Description
Description
Ensure reliable performance with our nylon-insulated female disconnect, ideal for wiring various electrical projects.
Female disconnect, nylon fully insulated, funnel entry, 16 - 14 AWG, .187 X .032 tab size.
Panduit Pan-Term Female Disconnect, Vibration Resistant, Series: DNF-FIB, Stranded Conductor, 16 to 14 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.16 in Dia Maximum Nylon Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Blue, Tin Plated, 0.78 in L x 0.29 in W x 0.18 in H, Fully Insulated
Panduit - DNF14-187FIB-C - Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Disconnects available in common industry tab sizes
- UL and CSA rated up to 600 V per UL 310
Specifications
Specifications
Panduit - DNF14-187FIB-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNF14-187FIB-C |
| UNSPSC Code | 39121400 |
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #16 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.187 x 0.032 |
| Tab Size (mm) | 4.8 x 0.8 |
| Standards Met | UL 310 Listed |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94-HB |
| Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 105 |
| UPC | 07498375980 |
Panduit - DNF14-187FIB-C - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
