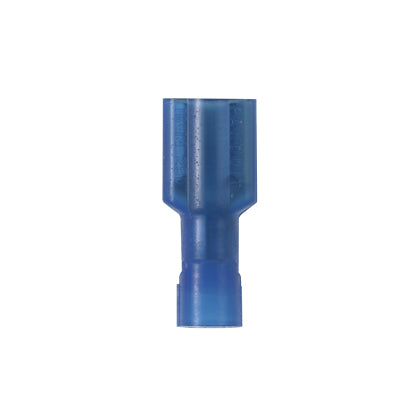

Panduit DNF14-187FIB-M | Pan-Term Loose Piece Disconnect
Description
Description
Ensure reliable performance with our nylon-insulated female disconnect, ideal for wiring various electrical projects.
Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost. Fully insulated design provides protection from electrical shorts. Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection. UL Flammability UL 94V-2/HB, maximum insulation temperature 221 Degrees Fahrenheit (105 Degrees Celsius). UL and CSA rated up to 600 Volts per UL 310.
Panduit Pan-Term Female Disconnect, Vibration Resistant Loose Piece, Series: DNF-FIB, Stranded Conductor, 16 to 14 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.16 in Dia Maximum Nylon Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Blue, TiN Coated, 0.78 in L x 0.29 in W x 0.18 in H, Insulated
Panduit - DNF14-187FIB-M - Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Specifications
Specifications
Panduit - DNF14-187FIB-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNF14-187FIB-M |
| UNSPSC Code | 39121400 |
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #16 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.187 x 0.032 |
| Tab Size (mm) | 4.8 x 0.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94-HB |
| Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 105 |
| UPC | 07498375984 |
