Panduit DNF14-206-C | Pan-Term DNF14-206-C Loose Piece Disconnect
Description
Description

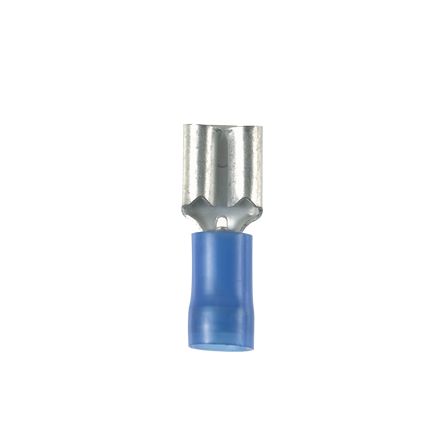

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a blue, nylon. It has a tab size of 0.205/0.187 x 0.020" (5.2/4.7 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.76" (19.3 mm) long and 0.25" (6.4 mm) wide. The disconnect has a funnel entry configuration and insulation grip sleeve barrel. It comes in bottles of 100.
Panduit DNF14-206-C Female Disconnect, Nylon Barrel Insulated, 16, 14 Awg, .187/.205 X .020 Tab Size, Funnel Entry, Pack Of 100
Specifications
Specifications
Panduit - DNF14-206-C - Product Categories
- Wire Termination
- Disconnects
Panduit - DNF14-206-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNF14-206-C |
| Item Description | Pan-Term DNF14-206-C Loose Piece Disconnect |
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.205/0.187 x 0.020 |
| Tab Size (mm) | 5.2/4.8 x 0.5 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 300 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel |
| Flammability Rating | UL94-HB |
| Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 90 |
| Maximum Operating Temperature (°F) | 194 |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Wire Insulation Diameter (In.) | 0.162 |
| Maximum Wire Insulation Diameter (mm) | 4.12 |
| Overall Length (In.) | 0.76 |
| Overall Length (mm) | 19.3 |
| Overall Thickness (In.) | 0.16 |
| Overall Thickness (mm) | 0.4 |
| Overall Width (In.) | 0.25 |
| Overall Width (mm) | 6.4 |
| Tongue Angle | Straight |
| Packaging Type | Bottle |
| Product Type | Disconnect |
| For Use With | CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Maximum Voltage (kV) | 0.3 |
| Part Features | • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • UL Flammability UL 94V-2/HB, maximum insulation temperature 194°F (90°C) • UL and CSA rated up to 300 V per UL 310, where applicable |
Panduit - DNF14-206-C - Package Information
| UPC | 07498382646 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0071 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.0355 |
