Description
Description

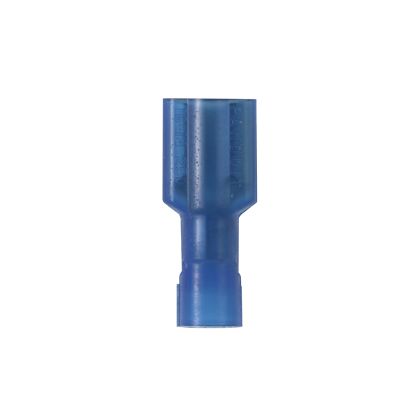

Panduit Pan-Term Female Disconnect, Vibration Resistant, Series: DNF-FI, Stranded Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.16 in Dia Maximum Nylon Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Blue, Tin Plated, 0.94 in L x 0.36 in W x 0.24 in H, Fully Insulated
Features + Benefits
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit DNF14-250FI-M Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Blue |
| Barrel Type | Grip Sleeve |
| Flammability Rating | HB |
| Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Pan-Term |
| Maximum Wire Insulation Diameter (In.) | 0.16 |
| Maximum Wire Insulation Diameter (mm) | 4.1 |
| Overall Height (In.) | 0.24 |
| Overall Height (mm) | 6.1 |
| Overall Length (In.) | 0.94 |
| Overall Length (mm) | 23.9 |
| Overall Width (In.) | 0.36 |
Panduit DNF14-250FI-M Data Sheets
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Fully Insulated (Std Nylon)- Female Disconnects - Sleeved Barrel (Loose Piece) Part Drawing A41672 | Download and View |
