Brand: Panduit | SKU: DNF14-250FIB-3K

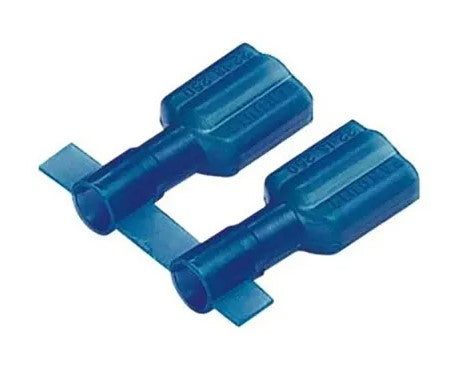

Panduit DNF14-250FIB-3K | Reel Smart Disconnect, Blue, 14-16 AWG, 0.250 x 0.032" Tab

$1,164.18

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Panduit DNF14-250FIB-3K | Reel Smart Disconnect, Blue, 14-16 AWG, 0.250 x 0.032" Tab

Ensure reliable performance with our nylon-insulated female disconnect, ideal for wiring various electrical projects.

Specifications

Panduit - DNF14-250FIB-3K - Specifications

Disconnect Type	Female Disconnect
Insulation Material	Nylon
Insulation Type	Fully Insulated
Maximum Copper Conductor Size (AWG)	#14
Maximum Wire Size (AWG)	14
Minimum Wire Size (AWG)	#16
Wire Strip Length (In.)	9/32
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.250 x 0.032
Tab Size (mm)	6.3 x 0.8
Standards Met	UL 310, CSA 22.2 No.153
Maximum Voltage (V)	600
Base Material	Brass
Finish/Coating	Tin-Plated
Color Code	Blue
Barrel Type	Funnel Entry
Flammability Rating	UL94-HB
Maximum Operating Temperature (°C)	105
Maximum Operating Temperature (°F)	221
Sub Brand	Reel Smart™
Maximum Metric Conductor Size (mm²)	2.5

Panduit - DNF14-250FIB-3K - Package Includes

UPC	07498382693
Std. Pkg. Qty.	3000
Std. Pkg. Volume (cf)	0.9208
Std. Ctn. Qty.	0
Std. Ctn. Volume (cf)	0.0000

Panduit - DNF14-250FIB-3K - Videos

Panduit DNF14-250FIB-3K Video	Click to View
