Brand: Panduit | SKU: DNF14-250FIB-M

Panduit DNF14-250FIB-M | Panduit - Female disconnect - blue

$434.85

Shipping calculated at checkout.

Low prices.

Price match guarantee
In-House Experts.

We know our products
Easy Returns.

Quick & Hassle Free
Superior Selection.

Extensive product catalog

Description

Panduit - Female disconnect - blue - DNF14-250FIB-M. Panduit Terminal Connector - 1000 Pack - 1 x Quick Disconnect - Blue - DNF14-250FIB-M.

Specifications

General Information

Manufacturer	PANDUIT CORP
Manufacturer Part Number	DNF14-250FIB-M
Manufacturer Website Address	http://www.panduit.com
Brand Name	Panduit
Product Name	Terminal Connector

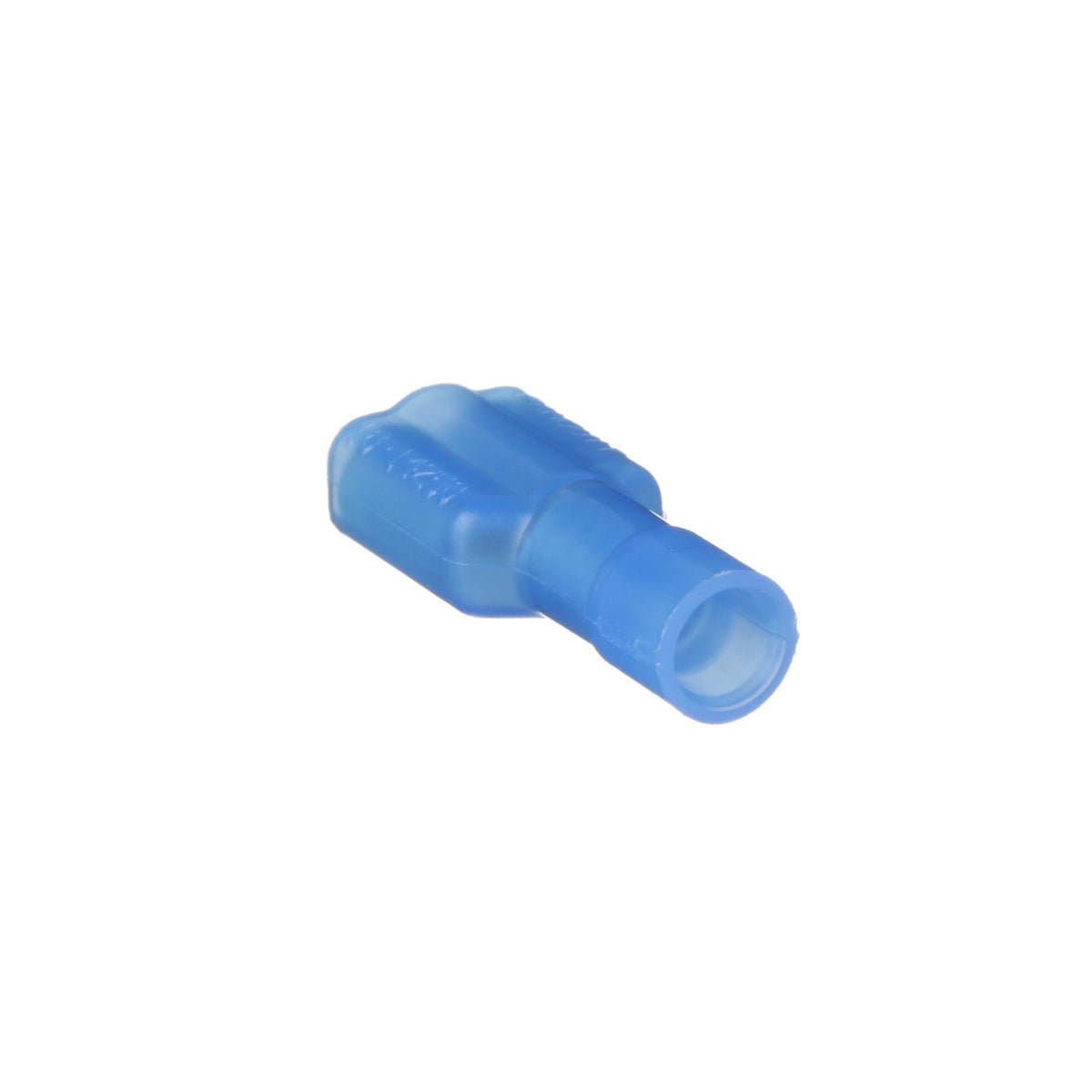

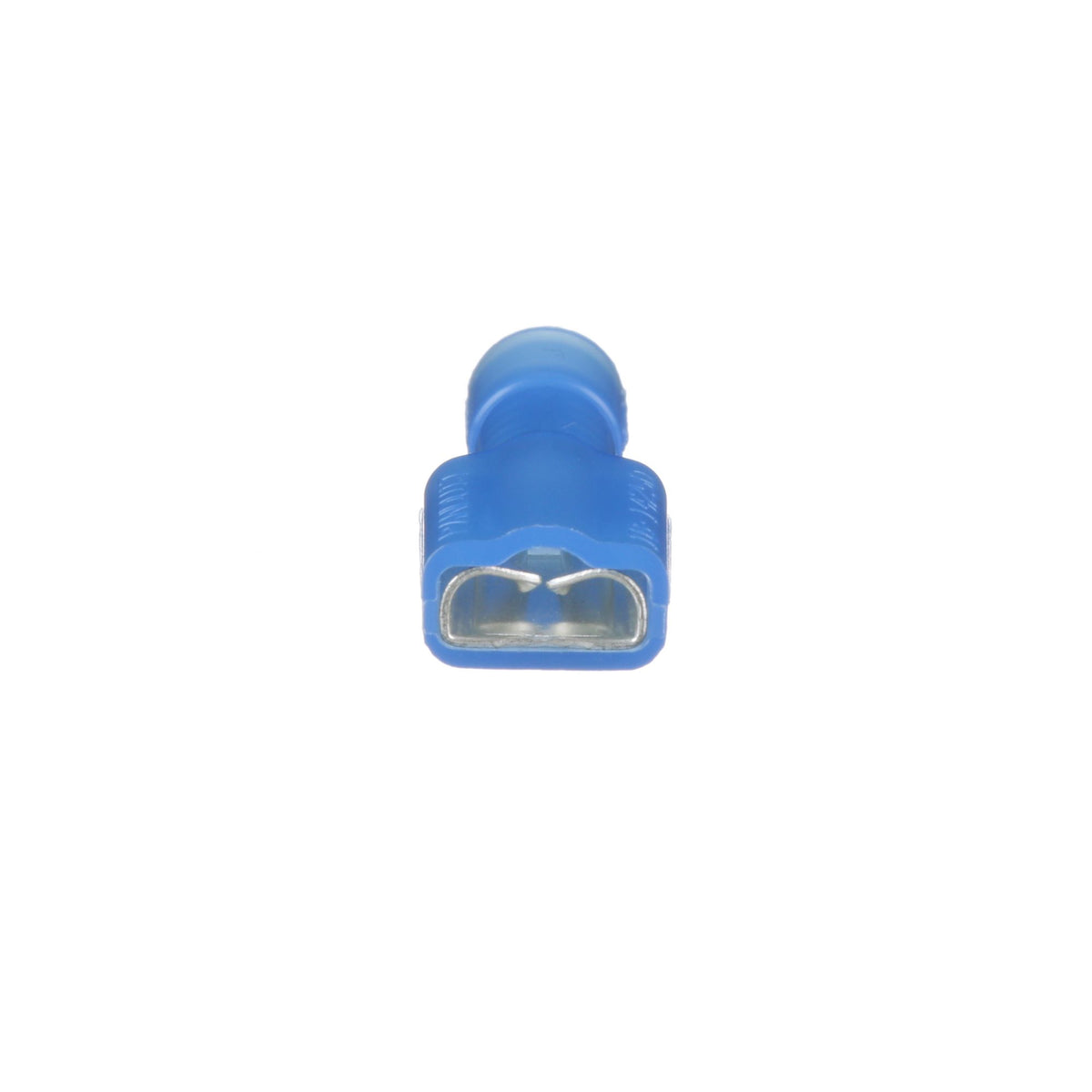

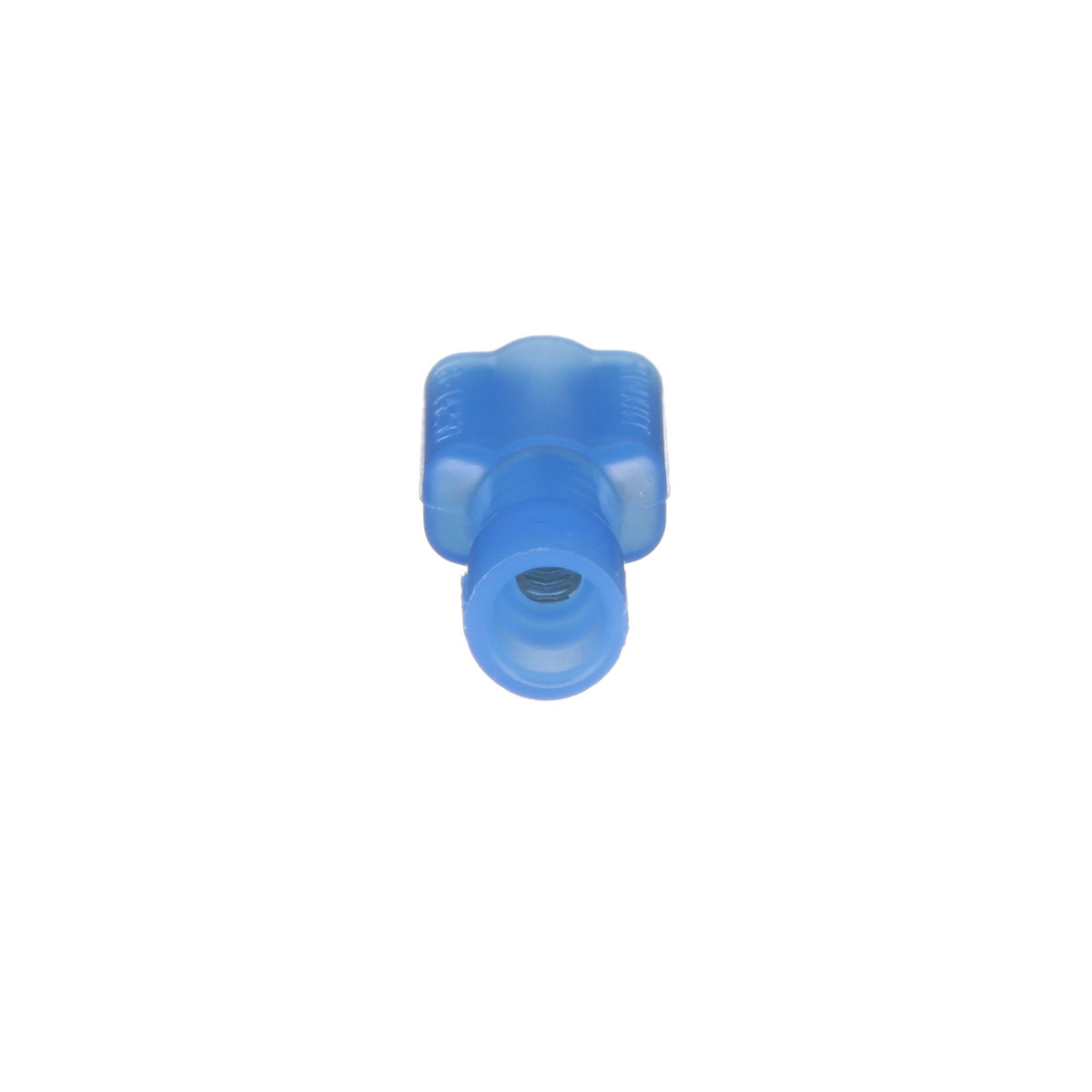

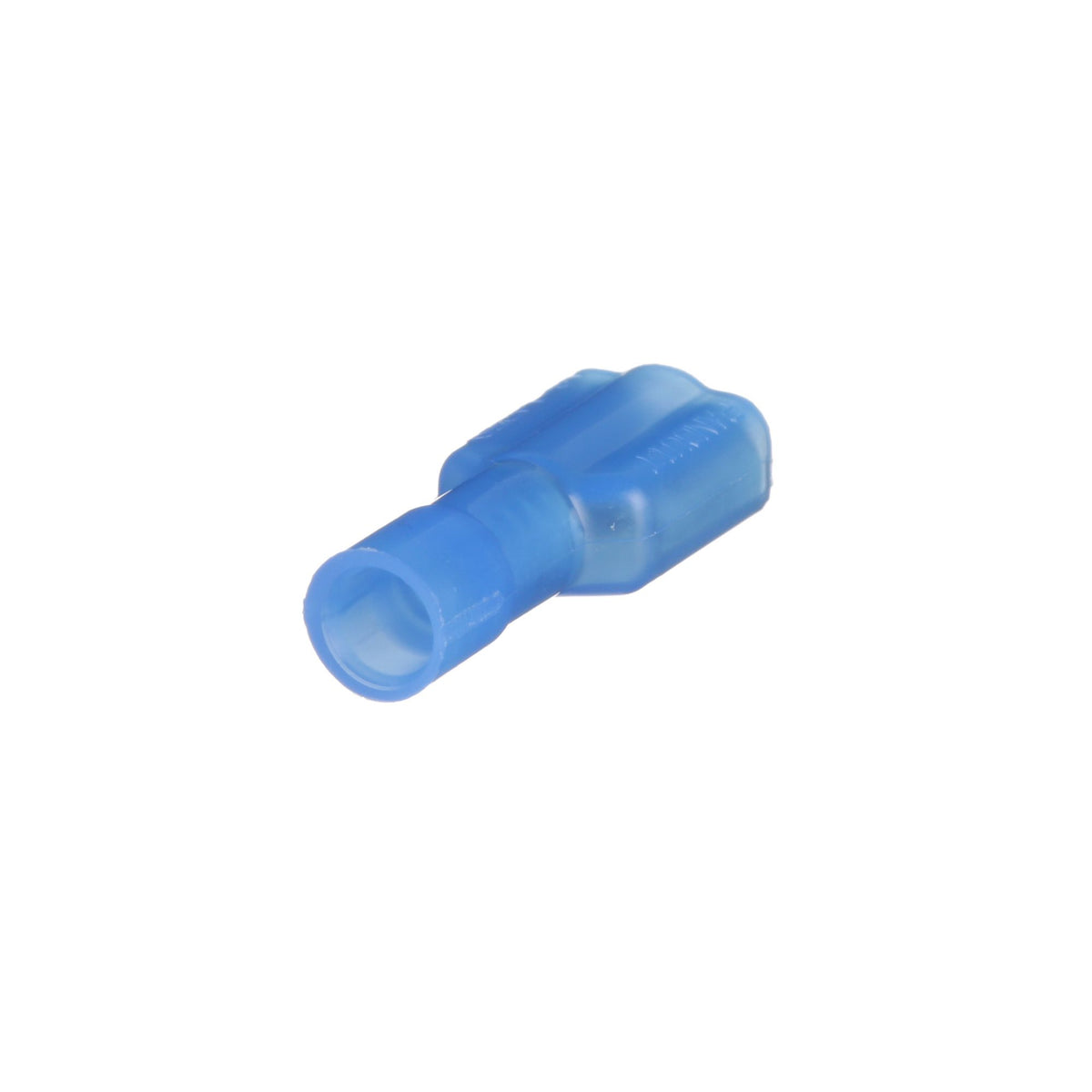

Marketing Information	The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, nylon housing. It has a tab size of 0.250 x 0.032" (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.84" (21.3 mm) long and 0.35" (8.9 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in boxes of 1000.
Packaged Quantity	1000
Product Type	Terminal Connector
UPC	0074983827510
Weight (lb)	2.7

Technical Information

Connector Details	1 x Quick Disconnect
Contact Plating	Tin
Features	Flame Retardant

Physical Characteristics

Color	Blue
Material	Nylon - Insulation
Material	Base
Width	0.4"

Miscellaneous

Environmentally Friendly	Yes
Environmental Certification	RoHS

Warranty

Limited Warranty	1 Year
