Brand: Panduit
|
SKU:
PAN-DNF14-250FIM-L
Panduit DNF14-250FIM-L | Pan-Term DNF14-250FIM-L Disconnect, Blue, Nylon, 14-16 AWG, 0.250 x 0.032" Tab
Regular price
$56.14
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNF14-250FIM-L | Pan-Term DNF14-250FIM-L Disconnect, Blue, ...
Regular price
$56.14
Unit price
Brand: Panduit
|
SKU:
PAN-DNF14-250FIM-L
Regular price
$56.14
Unit price
Shipping calculated at checkout.
Description
Description

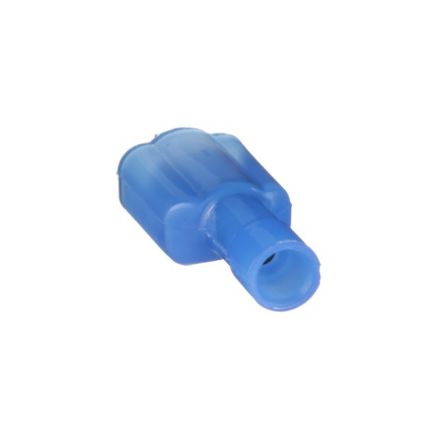

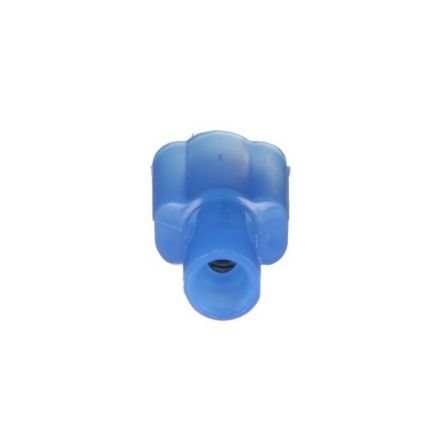

Panduit DNF14-250FIM-L | Pan-Term DNF14-250FIM-L Disconnect, Blue, Nylon, 14-16 AWG, 0.250 x 0.032" Tab

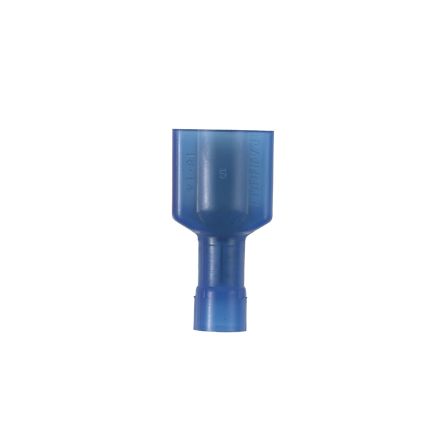

Panduit DNF14-250FIM-L Male Disconnect
Male Disconnect, nylon fully insulated, 16 - 14 AWG, .250 x .032 tab size.
Panduit - DNF14-250FIM-L - Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- UL Flammability UL 94V-2/HB, maximum insulation temperature 221F (105C)
- Coupler, male, and female parts sold separately
Specifications
Specifications
Panduit - DNF14-250FIM-L - Product Categories
- Wire Termination
- Disconnects
Panduit - DNF14-250FIM-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNF14-250FIM-L |
| Item Description | Pan-Term DNF14-250FIM-L Disconnect, Blue, Nylon, 14-16 AWG, 0.250 x 0.032" Tab |
| Disconnect Type | Male Tab Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Nickel-Plated |
| Color Code | Blue |
| Barrel Type | Funnel |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Wire Insulation Diameter (In.) | 0.158 |
| Maximum Wire Insulation Diameter (mm) | 4.01 |
| Overall Height (In.) | 0.27 |
| Overall Height (mm) | 6.9 |
| Overall Length (In.) | 0.9 |
| Overall Length (mm) | 22.9 |
| Overall Width (In.) | 0.42 |
| Overall Width (mm) | 10.7 |
| Tongue Angle | Straight |
| Packaging Type | Bottle |
| Product Type | Disconnect |
| For Use With | CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525) |
| Maximum Voltage (kV) | 0.6 |
| Part Features | • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Fully insulated design provides protection from electrical shorts • Internal barrel serrations assure good wire contact and maximum tensile strength • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • Coupler, male, and female parts sold separately • UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C) • UL and CSA rated up to 600 V per UL 310 |
Panduit - DNF14-250FIM-L - Package Information
| UPC | 07498352167 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0128 |
| Standard Ctn. Quantity | 250 |
| Standard Ctn. Volume (cf) | 0.0641 |
Panduit - DNF14-250FIM-L - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
