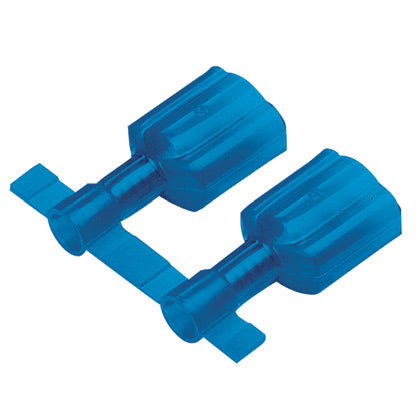

Panduit DNF14-250FIMB-K | Reel Smart Disconnects, Blue, Nylon, 14-16 AWG, 0.250 x 0.032"
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNF14-250FIMB-K | Reel Smart Disconnects, Blue, Nylon, 14-1...
Description
Description
Our male disconnect offers reliable connections with consistent performance, nylon-insulated design, and tool-free application minimize errors.
Male disconnect (oversized housing), nylon fully insulated, funnel entry, insulation support, internal wire stop, 16 - 14 AWG wire range, .250 x .032 in. (6.3 x .8mm) tab size.
Panduit Pan-Term Male Tab Disconnect, Vibration Resistant, Series: DNF-FIMB, Stranded Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Standard Barrel, 600 VAC, 9/32 in L Wire Strip, 0.16 in Dia Maximum Insulation, Standard Barrel Configuration, 221 deg F, Brass, Blue, Nickel Plated, 0.91 in L x 0.46 in W
Panduit - DNF14-250FIMB-K - Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Nylon barrel insulated
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Male tab couples with (all .250 x .032) female disconnects
- Fully insulated design provides protection from electrical shorts
- Male tab can be inserted and removed from the female disconnect without the use of tools for lower installed cost
Specifications
Specifications
Panduit - DNF14-250FIMB-K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNF14-250FIMB-K |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Disconnect Type | Male Tab Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #16 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Nickel-Plated |
| Color Code | Blue |
| Barrel Type | Standard |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Reel Smart |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| UPC | 07498382313 |
