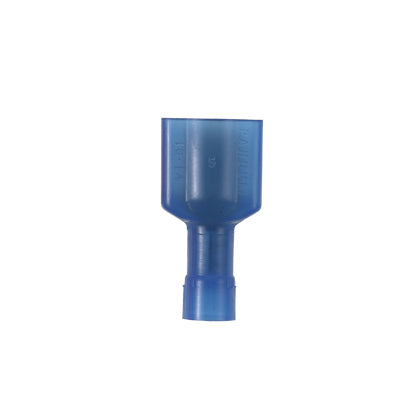

Panduit DNF14-250FIMB-Q | Loose Piece Disconnect | UPC - 07498312035
Regular price
$32.63
Unit price
Description
Description
Panduit Pan-Term Male Tab Disconnect, Loose Piece Vibration Resistant, Series: DNF-FIMB, Stranded Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Standard Barrel, 600 VAC, 9/32 in L Wire Strip, 0.16 in Dia Maximum Insulation, Standard Barrel Configuration, 221 deg F, Brass, Blue, Nickel Plated, 0.91 in L x 0.45 in W
Features + Benefits
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
- Oversized housing designed for maximum versatility to mate with most commercially available fully insulated female disconnects
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Premium nylon fully insulated
Panduit DNF14-250FIMB-Q Key Specs
| Note | DNF14-250FIMB-Q replaces DNF14-250FIMB-L |
| Disconnect Type | Male Tab Disconnect |
| Insulation Material | Nylon - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Nickel |
| Color Code | Blue |
| Flammability Rating | HB |
| Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (mm) | 4.1 |
| Maximum Operating Temperature (°C) | 105 |
