Brand: Panduit
|
SKU:
PAN-DNF14-250FIBX-2K

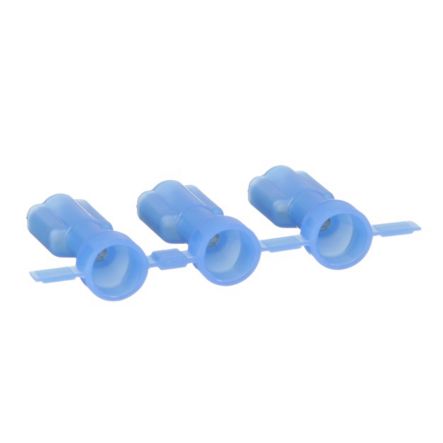

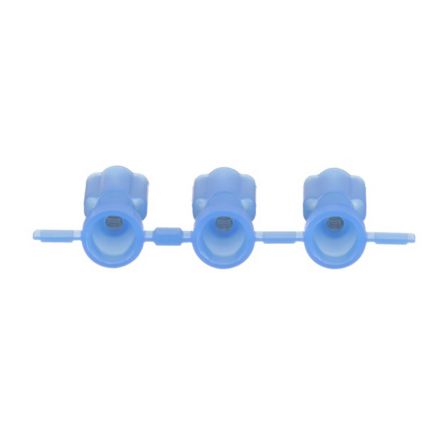

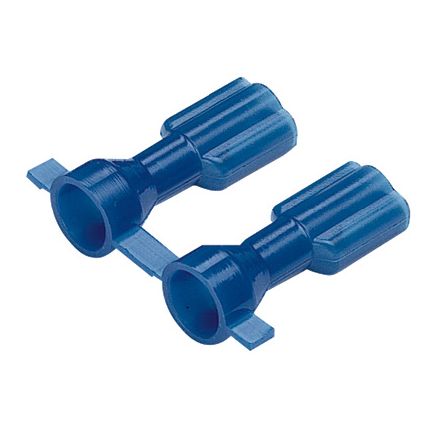

Panduit DNF14250FIBX-2K | Reel Smart Dnf14250Fibx-2K Disconnect, Blue, Nylon, 14-16 Awg, .250 X .032" Tab
Regular price
$972.86
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNF14250FIBX-2K | Reel Smart Dnf14250Fibx-2K Disconnect, Bl...
Regular price
$972.86
Unit price
Brand: Panduit
|
SKU:
PAN-DNF14-250FIBX-2K
Regular price
$972.86
Unit price
Shipping calculated at checkout.
Description
Description
Panduit DNF14250FIBX-2K | Reel Smart Dnf14250Fibx-2K Disconnect, Blue, Nylon, 14-16 Awg, .250 X .032" Tab
Disc,F,BlNy,Xp,.250x.032",16-14AWG,2000
Panduit - DNF14250FIBX-2K - Features
- Female disconnect, (standard receptacle housings and expanded wire entry area for large wire insulation o.d.), nylon fully insulated, funnel entry with insulation support and internal wire stop. 16 - 14 AWG wire range, .250 x .032 in. (6.3 x .8mm) tab size.
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Disconnects available in common industry tab sizes
- Internal wire stop assures proper length of insertion into trminal barrel, providing a higher quality connection
- UL and CSA rated up to 600 V per UL 310
Specifications
Specifications
Panduit - DNF14250FIBX-2K - Product Categories
- Wire Termination
- Disconnects
Panduit - DNF14250FIBX-2K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNF14250FIBX-2K |
| Item Description | Reel Smart Dnf14250Fibx-2K Disconnect, Blue, Nylon, 14-16 Awg, .250 X .032" Tab |
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Expanded Entry |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Reel Smart |
| Maximum Metric Conductor Size (mm²) | 2.5 |
| Minimum Metric Conductor Size (mm²) | 1.5 |
| Maximum Wire Insulation Diameter (In.) | 0.24 |
| Maximum Wire Insulation Diameter (mm) | 6.1 |
| Overall Height (In.) | 0.22 |
| Overall Height (mm) | 5.5 |
| Overall Length (In.) | 0.93 |
| Overall Length (mm) | 23.6 |
| Overall Width (In.) | 0.35 |
| Overall Width (mm) | 8.9 |
| Tongue Angle | Straight |
| Packaging Type | Reel |
| Product Type | Disconnect |
| For Use With | Crimp press with CA9 (CD9-8B) or CA-800EZ (CD-800-8) applicator |
| Maximum Voltage (kV) | 0.6 |
| Part Features | • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Expanded wire entry designed to accommodate wire with a larger insulation thickness • Fully insulated design provides protection from electrical shorts • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C) • UL and CSA rated up to 600 V per UL 310 |
Panduit - DNF14250FIBX-2K - Package Information
| UPC | 07498382778 |
|---|---|
| Standard Package Quantity | 2000 |
| Standard Package Volume (cf) | 0.9208 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
