Brand: Panduit
|
SKU:
10044081

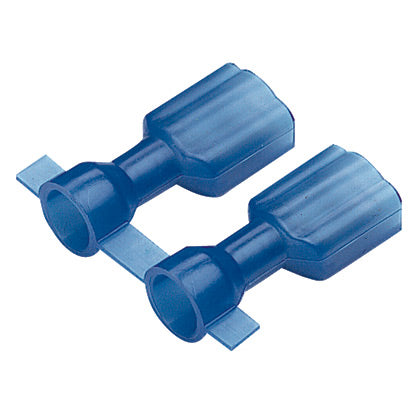

Panduit DNF14250FIMX-2K | Disconnects on a Reel | UPC - 07498334344
Regular price
$603.33
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNF14250FIMX-2K | Disconnects on a Reel | UPC - 07498334344
Regular price
$603.33
Unit price
Description
Description
Panduit Reel Smart Male Tab Disconnect, Vibration Resistant, Series: DNF-FIMX, Stranded Conductor, 16 to 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Expanded Barrel, 600 VAC, 9/32 in L Wire Strip, 0.244 in Maximum Insulation, 221 deg F, Brass, Blue, Nickel Plated, 0.97 in L x 0.41 in W
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Male tab couples with (all 0.25 x 0.032 in) female disconnects
- Fully insulated design provides protection from electrical shorts
- Male tab can be inserted and removed from the female disconnect without the use of tools for lower installed cost
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Nylon barrel insulated
- Disconnects on a reel
Panduit Panduit DNF14250FIMX-2K | Disconnects on a Reel | UPC - 07498334344 Key Specs
| Disconnect Type | Male Tab Disconnect |
| Insulation Material | Nylon - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Nickel |
| Color Code | Blue |
| Flammability Rating | HB |
| Insulation Diameter (In.) | 0.24 |
| Insulation Diameter (mm) | 6.2 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
Panduit Panduit DNF14250FIMX-2K | Disconnects on a Reel | UPC - 07498334344 Environmental Information
| Panduit's RoHS Statement | Download and View |
