Panduit DNF18-110-E | Loose Piece Disconnect | UPC - 07498336438

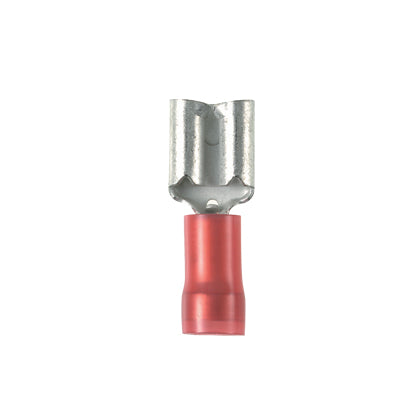

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.110 x 0.032" (2.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.69" (17.5 mm) long and 0.15" (3.8 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bags of 20.

---

Panduit Panduit DNF18-110-E | Loose Piece Disconnect | UPC - 07498336438 Key Specs

Disconnect Type	Female Disconnect
Insulation Material	Nylon - Barrel Insulated
Maximum Copper Conductor Size (AWG)	#18
Maximum Wire Size (AWG)	#18
Minimum Wire Size (AWG)	#22
Minimum Copper Conductor Size (AWG)	#22
Wire Strip Length (In.)	0.28
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.11
Tab Size (mm)	2.8
Standards Met	UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Voltage (V)	300
Base Material	Brass
Finish/Coating	Tinned
Color Code	Red
Barrel Type	Grip Sleeve
Flammability Rating	HB
Insulation Diameter (In.)	0.1
Insulation Diameter (mm)	2.5
Maximum Operating Temperature (°C)	90
