Brand: Panduit
|
SKU:
DNF18-110FIB-C

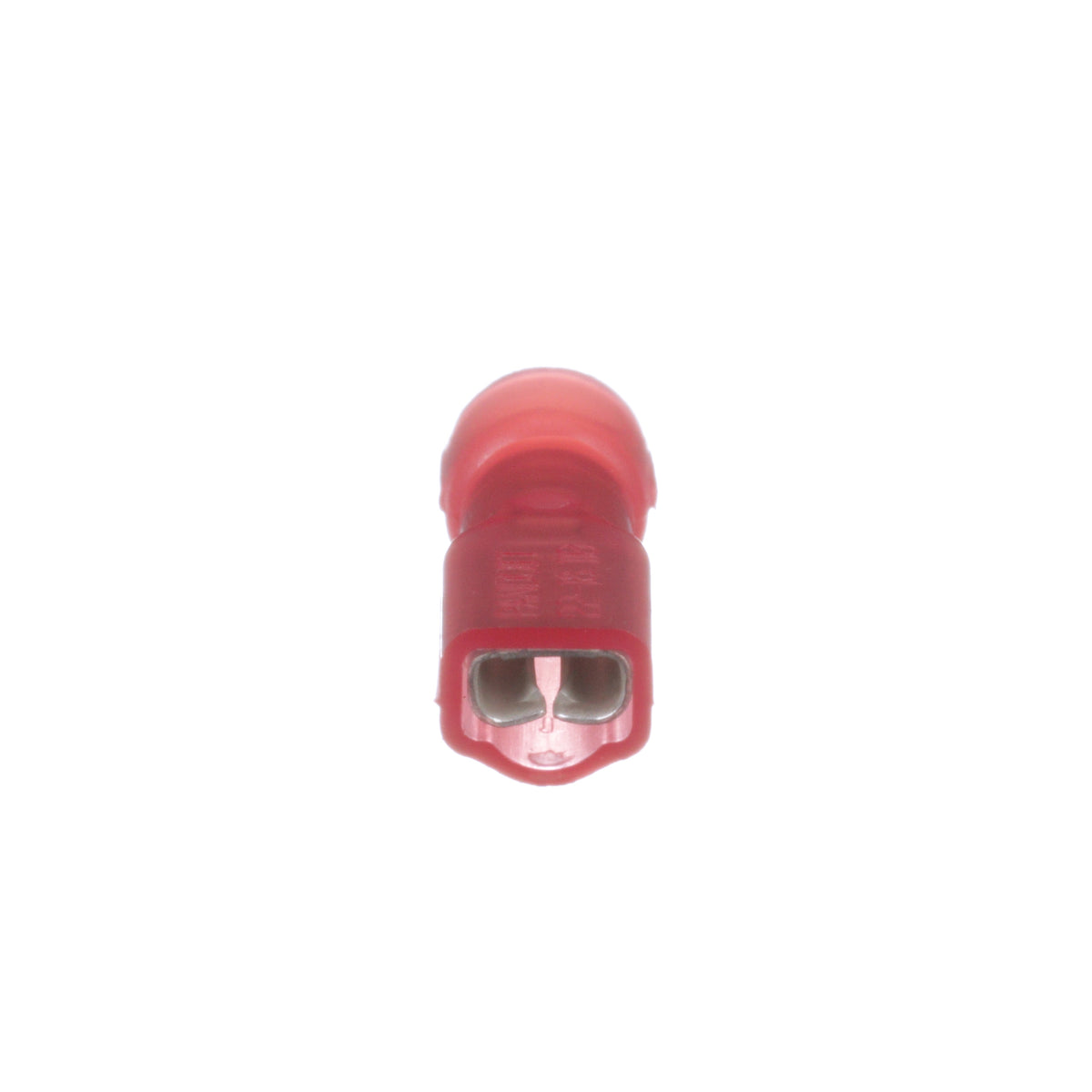

Panduit DNF18-110FIB-C | Loose Piece Disconnect | UPC - 07498382673
Regular price
$1.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNF18-110FIB-C | Loose Piece Disconnect | UPC - 07498382673
Regular price
$1.46
Unit price
Brand: Panduit
|
SKU:
DNF18-110FIB-C
Regular price
$1.46
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Female Disconnect, Vibration Resistant, Series: DNF-FIB, Stranded Conductor, 22 to 18 AWG Conductor, 0.11 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.12 in Dia Maximum Nylon Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Red, Tin Plated, 0.71 in L x 0.19 in W x 0.16 in H, Fully Insulated
Features + Benefits
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit DNF18-110FIB-C | Loose Piece Disconnect | UPC - 07498382673 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.110 x 0.032 |
| Tab Size (mm) | 2.8 x 0.8 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size (mm²) | 1 |
Panduit DNF18-110FIB-C | Loose Piece Disconnect | UPC - 07498382673 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - DNF18-110FIB-C Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | Loose Piece, Nylon, Fully Insulated Female Disconnects, .110 X .032, .110 X .020 Tab | Download and View |
Panduit DNF18-110FIB-C | Loose Piece Disconnect | UPC - 07498382673 Environmental Information
| Panduit's RoHS Statement | Download and View |
