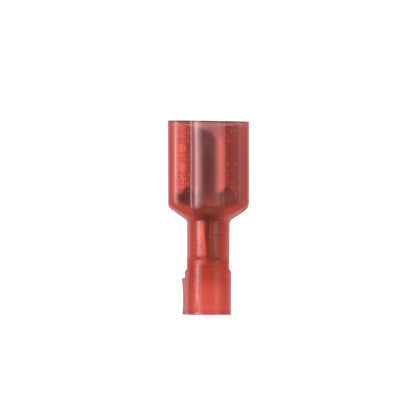

Panduit DNF18-110FIB-E | Loose Piece Disconnect | UPC - 07498336439
Regular price
$26.68
Unit price
Brand: Panduit
|
SKU:
10044084
Regular price
$26.68
Unit price
Description
Description
Panduit Female Disconnect, Type DNF-FIB Loose Piece Vibration-Resistant, Stranded Conductor, 22 to 18 AWG Conductor, 0.11 in W x 0.032 in THK Tab, Butted Seam/Funnel Entry Barrel, Crimp Terminal, 600 V, Specifications: 0.12 in Dia Nylon Insulation, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip, 221 deg F, Brass, Red, Tin Plated, 0.71 in L x 0.19 in W x 0.16 in H, Fully Insulated
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit Panduit DNF18-110FIB-E | Loose Piece Disconnect | UPC - 07498336439 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | #22 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.11 |
| Tab Size (mm) | 2.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Red |
| Flammability Rating | HB |
| Insulation Diameter (In.) | 0.12 |
| Insulation Diameter (mm) | 3 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
Panduit Panduit DNF18-110FIB-E | Loose Piece Disconnect | UPC - 07498336439 Environmental Information
| Panduit's RoHS Statement | Download and View |
