Panduit DNF18-111-C | Loose Piece Disconnect | UPC - 07498382706
Description
Description
Panduit Pan-Term disconnects are designed and precision made to function as a reliable method of making quick, repeatable interconnections. Available with nylon, premium nylon or vinyl insulation or non-insulated.

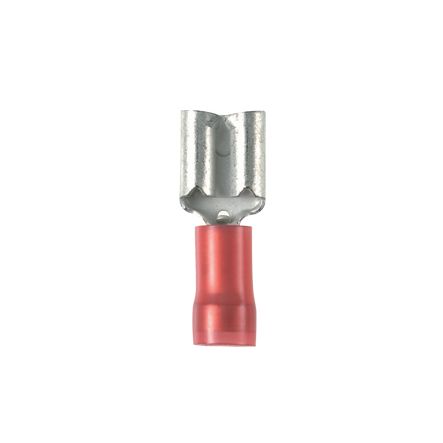

Panduit PAN-TERM Female Disconnect, Vibration Resistant, Series: DNF, Stranded Copper Conductor, 22 to 18 AWG Conductor, 0.11 in W x 0.02 in THK Tab, Funnel Entry/Sleeve/Serrated Barrel, Crimp Terminal, 300 VAC, 9/32 in L Wire Strip, 0.1 in Dia Insulation, 194 deg F, Brass/Nylon, Red, Tin Plated, 0.69 in L x 0.15 in W x 0.07 in H, Insulated
Features + Benefits
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit DNF18-111-C | Loose Piece Disconnect | UPC - 07498382706 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | #22 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.11 |
| Tab Size (mm) | 2.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 300 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Red |
| Barrel Type | Grip Sleeve |
| Flammability Rating | HB |
| Insulation Diameter (In.) | 0.1 |
| Insulation Diameter (mm) | 2.5 |
| Maximum Operating Temperature (°C) | 90 |
Panduit DNF18-111-C | Loose Piece Disconnect | UPC - 07498382706 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - DNH18-250FIM-Q Product Page | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
| Part Drawings | #22-18 Barrel Nylon Insulated Female Disconnect, Funnel Wire Entry | Download and View |
Panduit DNF18-111-C | Loose Piece Disconnect | UPC - 07498382706 Environmental Information
| Panduit's RoHS Statement | Download and View |
