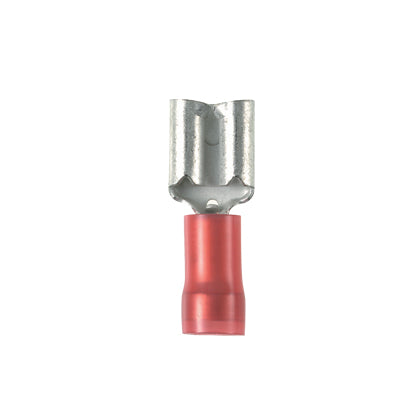

Panduit DNF18-111-M | Pan-Term Disconnect, Red, Nylon, 18-22 AWG, 0...
Description
Description
Ensure reliable performance with our nylon-insulated female disconnect, ideal for wiring various electrical projects.
The DNF18-111-M Pan-Term Disconnect is a female disconnect with a nylon insulated barrel and funnel entry. The internal wire stop assures proper wire insertion length for a higher quality connection. Barrel serrations assure good wire contact and maxim um tensile strength. Metal insulation grip sleeve crimps to wire insulation providing protection to the crimp joint for high vibration applications.
Panduit Pan-Term Female Disconnect, Vibration Resistant, Series: DNF, Stranded Conductor, 22 to 18 AWG Conductor, 0.11 in W x 0.02 in THK Tab, Sleeve Barrel, Crimp Terminal, 300 VAC, 9/32 in L Wire Strip, 0.1 in Dia Maximum Nylon Insulation, Funnel Entry Barrel Configuration, 194 deg F, Brass, Red, Tin Plated, 0.69 in L x 0.15 in W x 0.07 in H, Insulated
Panduit - DNF18-111-M - Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Barrel insulated design provides protection from electrical shorts
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- U Flammability UL 94V-2/HB, maximum insulation temperature 194F (90C)
Specifications
Specifications
Panduit - DNF18-111-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNF18-111-M |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.110 x 0.020 |
| Tab Size (mm) | 2.8 x 0.5 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 300 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 90 |
| Maximum Operating Temperature (°F) | 194 |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size (mm²) | 1 |
| UPC | 07498382707 |
Panduit - DNF18-111-M - Videos
| Panduit DNF18-111-M Video 1 | Click to View |
|---|---|
| Panduit DNF18-111-M Video 2 | Click to View |
