Panduit DNF18-188-C | Pan-Term DNF18-188-C Loose Piece Disconnect
Regular price
$125.37
Unit price
Description
Description
Panduit DNF18-188-C | Pan-Term DNF18-188-C Loose Piece Disconnect

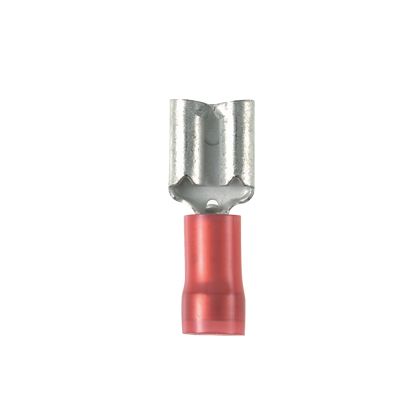

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.187 x 0.020" (4.8 x 0.5 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.76" (19.3 mm) long and 0.23" (5.9 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100.
Specifications
Specifications
Panduit - DNF18-188-C - Product Categories
- Wire Termination
- Disconnects
Panduit - DNF18-188-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNF18-188-C |
| Item Description | Pan-Term DNF18-188-C Loose Piece Disconnect |
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.187 x 0.020 |
| Tab Size (mm) | 4.8 x 0.5 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 300 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel |
| Flammability Rating | UL94-HB |
| Insulation Diameter (In.) | 0.14 |
| Insulation Diameter (mm) | 3.5 |
| Maximum Operating Temperature (°C) | 90 |
| Maximum Operating Temperature (°F) | 194 |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Wire Insulation Diameter (In.) | 0.137 |
| Maximum Wire Insulation Diameter (mm) | 3.5 |
| Overall Length (In.) | 0.76 |
| Overall Length (mm) | 19.3 |
| Overall Width (In.) | 0.23 |
| Overall Width (mm) | 5.8 |
| Tongue Angle | Straight |
| Packaging Type | Bottle |
| Product Type | Disconnect |
| For Use With | CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Maximum Voltage (kV) | 0.3 |
| Part Features | • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications • Internal barrel serrations assure good wire contact and maximum tensile strength • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • UL Flammability UL 94V-2/HB, maximum insulation temperature 194°F (90°C) • UL and CSA rated up to 300 V per UL 310, where applicable |
Panduit - DNF18-188-C - Package Information
| UPC | 07498382700 |
|---|---|
| Std. Pkg. Qty. | 100 |
| Std. Pkg. Volume (cf) | 0.0064 |
| Std. Ctn. Qty. | 500 |
| Std. Ctn. Volume (cf) | 0.0319 |
