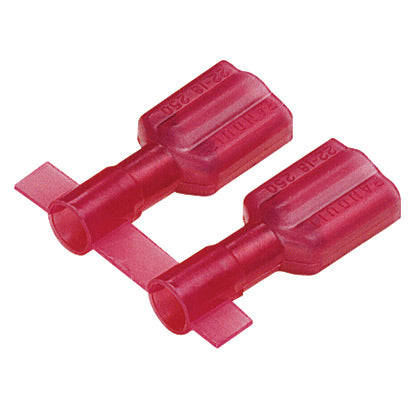

Panduit DNF18-188FIB-3K | Reel Smart Disconnect, Red, Nylon, 18-22 AWG, 0.187 x 0.02" Tab
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNF18-188FIB-3K | Reel Smart Disconnect, Red, Nylon, 18-22 ...
Description
Description
Ensure reliable performance with our nylon-insulated female disconnect, ideal for wiring various electrical projects.
Female disconnect, (standard receptacle housings), nylon fully insulated, funnel entry with insulation support and internal wire stop. 22 - 18 AWG wire range, .187 x .020 in. (4.8 x .5mm) tab size.
Panduit Reel Smart Female Disconnect, Vibration Resistant, Series: DNF-FIB, Stranded Conductor, 22 to 18 AWG Conductor, 0.187 in W x 0.02 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.136 in Dia Maximum Nylon Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Red, Tin Plated, 0.78 in L x 0.29 in W x 0.16 in H, Fully Insulated
Panduit - DNF18-188FIB-3K - Features
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Specifications
Specifications
Panduit - DNF18-188FIB-3K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNF18-188FIB-3K |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.187 x 0.020 |
| Tab Size (mm) | 4.8 x 0.5 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Reel Smart |
| Maximum Metric Conductor Size (mm²) | 1 |
| UPC | 07498370975 |
Panduit - DNF18-188FIB-3K - Videos
| Panduit DNF18-188FIB-3K Video 1 | Click to View |
|---|
