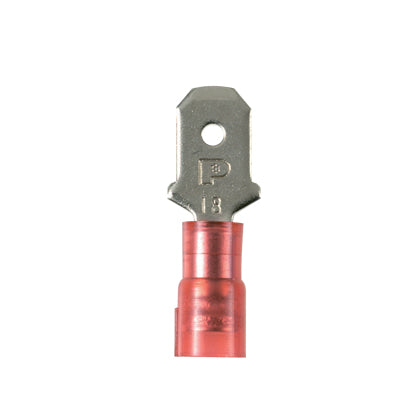

Panduit DNF18-250M-C | Pan-Term Loose Piece Disconnect
Description
Description
Our male disconnect offers reliable connections with consistent performance, nylon-insulated design, and tool-free application minimize errors.
Male Disconnect, nylon barrel insulated, funnel entry, 22 - 18 AWG, .250 x .032 tab.
Panduit Pan-Term Male Tab Disconnect, Loose Piece Vibration Resistant, Series: DNF-M, Stranded Conductor, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Sleeve/Standard Barrel, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.136 in Dia Maximum Insulation, Standard Barrel Configuration, 221 deg F, Copper, Red, Nickel Plated, 0.9 in L x 0.25 in W
Panduit - DNF18-250M-C - Features
- Male tab can be inserted and removed from the female disconnect without the use of tools for lower installed cost
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Insulation grip sleeve
- Male tab couples with (all .250 x .032) female disconnects
- Male tab can be inserted and removed from the female disconnect without the use of tools for lower installed cost
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Maximum insulation temperature 221F (105C)
Specifications
Specifications
Panduit - DNF18-250M-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNF18-250M-C |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Disconnect Type | Male Tab Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Copper |
| Finish/Coating | Nickel-Plated |
| Color Code | Red |
| Barrel Type | Standard |
| Flammability Rating | UL94-HB |
| Insulation Diameter (In.) | 0.14 |
| Insulation Diameter (mm) | 3.5 |
| Maximum Operating Temperature (°C) | 105 |
| UPC | 07498382712 |
