Panduit DNF18206FIBX-2K | Disconnects on a Reel | UPC - 07498382776
Regular price
$972.86
Unit price
Brand: Panduit
|
SKU:
PAN-DNF18-206FIBX-2K
Regular price
$972.86
Unit price
Shipping calculated at checkout.
Description
Description

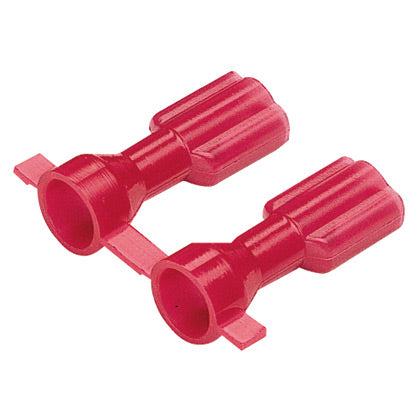

Panduit Reel Smart Disco Female Disconnect, Vibration Resistant, Series: DNF-FIBX, Stranded Conductor, 22 to 18 AWG Conductor, 0.187 to 0.205 in W x 0.02 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.21 in Dia Maximum Nylon Insulation, Expanded Barrel Configuration, 221 deg F, Brass, Red, Tin Plated, 0.87 in L x 0.31 in W x 0.22 in H, Fully Insulated
Features + Benefits
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit DNF18206FIBX-2K | Disconnects on a Reel | UPC - 07498382776 Key Specs
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.205/0.187 x 0.020 |
| Tab Size (mm) | 5.2/4.8 x 0.5 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Expanded Entry |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Reel Smart |
| Maximum Metric Conductor Size (mm²) | 1 |
Panduit DNF18206FIBX-2K | Disconnects on a Reel | UPC - 07498382776 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - DNF18205FIBX-2K Product Page | Download and View |
| Part Drawings | Female Disconnects-A41167 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit DNF18206FIBX-2K | Disconnects on a Reel | UPC - 07498382776 Environmental Information
| Panduit's RoHS Statement | Download and View |
