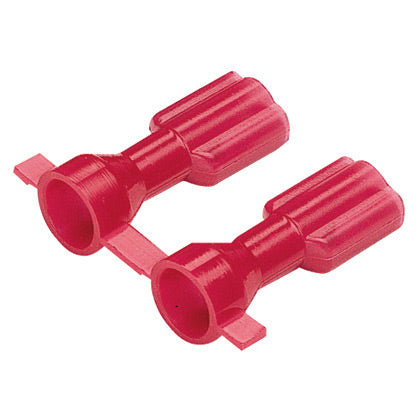

Panduit DNF18250FIBX-2K | Reel Smart Disconnect, Red, Nylon, 18-22 AWG, 0.250 x .032" Tab
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNF18250FIBX-2K | Reel Smart Disconnect, Red, Nylon, 18-22 ...
Description
Description
Conquer thicker wires with our vibration-resistant, nylon-insulated, expanded female disconnect. Offering a secure, tool-free connections for your various electrical projects.
The DNF18250FIBX-2K Reel Smart Disconnect is a continuously molded and fully insulated female disconnect with an expanded funnel entry. The continuously molded design allows for consistent and reliable processing through Panduit applicators. The intern al wire stop assures proper wire insertion length into the terminal barrel for a higher quality connection, and the expanded funnel entry accomodates wire with larger insulation thickness. Barrel serrations assure good wire contact and maximum tensile strength.
Panduit Reel Smart Female Disconnect, Vibration Resistant, Series: DNF-FIBX, Stranded Conductor, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.21 in Dia Maximum Nylon Insulation, Expanded Barrel Configuration, 221 deg F, Brass, Red, Tin Plated, 0.93 in L x 0.35 in W x 0.22 in H, Fully Insulated
Panduit - DNF18250FIBX-2K - Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Expanded wire entry designed to accommodate wire with a larger insulation thickness
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Fully insulated design provides protection from electrical shorts
- Disconnects available in common industry tab sizes
- Internal wire stop assures proper length of insertion into trminal barrel, providing a higher quality connection
- UL and CSA rated up to 600 V per UL 310
Specifications
Specifications
Panduit - DNF18250FIBX-2K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNF18250FIBX-2K |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Expanded Entry |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Reel Smart |
| Maximum Metric Conductor Size (mm²) | 1 |
| UPC | 07498382775 |
