Brand: Panduit
|
SKU:
DRC-024579

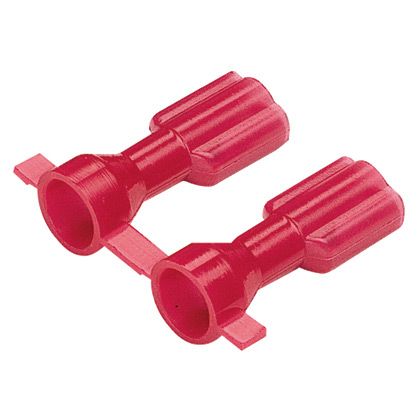

Panduit DNF18250FIBX-2K | Reel Smart DNF18250FIBX-2K Disconnect, Red, Nylon, 18-22 AWG, 0.250 x .032" Tab
Regular price
$830.38
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNF18250FIBX-2K | Reel Smart DNF18250FIBX-2K Disconnect, Re...
Regular price
$830.38
Unit price
Description
Description
Panduit DNF18250FIBX-2K | Reel Smart DNF18250FIBX-2K Disconnect, Red, Nylon, 18-22 AWG, 0.250 x .032" Tab
Disc,F,RdNy,.250x.032",22-18AWG,BS,2000
Specifications
Specifications
Panduit - DNF18250FIBX-2K - Product Categories
- Wire Termination
- Disconnects
Panduit - DNF18250FIBX-2K - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNF18250FIBX-2K |
| Item Description | Reel Smart DNF18250FIBX-2K Disconnect, Red, Nylon, 18-22 AWG, 0.250 x .032" Tab |
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Expanded Entry |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Reel Smart |
| Maximum Metric Conductor Size (mm²) | 1 |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Maximum Wire Insulation Diameter (In.) | 0.21 |
| Maximum Wire Insulation Diameter (mm) | 5.4 |
| Overall Height (In.) | 0.22 |
| Overall Height (mm) | 5.5 |
| Overall Length (In.) | 0.93 |
| Overall Length (mm) | 23.6 |
| Overall Width (In.) | 0.35 |
| Overall Width (mm) | 8.9 |
| Tongue Angle | Straight |
| Packaging Type | Reel |
| Product Type | Disconnect |
| For Use With | Crimp press with CA9 (CD9-6B) or CA-800EZ (CD-800-6) applicator |
| Maximum Voltage (kV) | 0.6 |
| Part Features | • Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time • Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost • Expanded wire entry designed to accommodate wire with a larger insulation thickness • Fully insulated design provides protection from electrical shorts • Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection • UL Flammability UL 94V-2/HB, maximum insulation temperature 221°F (105°C) • UL and CSA rated up to 600 V per UL 310 |
Brand Name - DNF18250FIBX-2K - Package Information
| UPC | 07498382775 |
|---|---|
| Standard Package Quantity | 2000 |
| Standard Package Volume (cf) | 0.7809 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Brand Name - DNF18250FIBX-2K - Videos
| Video URL 1 | Click to View |
|---|---|
| Video URL 2 | Click to View |
