Brand: Panduit
|
SKU:
972603

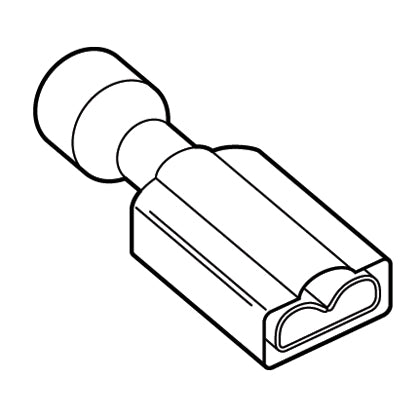

Panduit DNF18250FIBX-L | Loose Piece Disconnect | UPC - 07498311992
Regular price
$70.49
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNF18250FIBX-L | Loose Piece Disconnect | UPC - 07498311992
Regular price
$70.49
Unit price
Description
Description
Panduit Pan-Term Female Disconnect, Loose Piece Vibration Resistant, Series: DNF-FIBX, Stranded Conductor, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam/Expanded Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.21 in Dia Maximum Nylon Insulation, 221 deg F, Brass, Red, Tin Plated, 0.93 in L x 0.35 in W x 0.22 in H, Fully Insulated
Features + Benefits
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit DNF18250FIBX-L Key Specs
| Note | DNF18250FIBX-L replaces DNF18250FIBX-C |
| Disconnect Type | Female Disconnect |
| Insulation Material | Nylon - Barrel Insulated |
| Maximum Copper Conductor Size (AWG) | #22 |
| Maximum Wire Size (AWG) | #22 |
| Minimum Wire Size (AWG) | #18 |
| Minimum Copper Conductor Size (AWG) | #18 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.25 |
| Tab Size (mm) | 6.3 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Red |
| Flammability Rating | HB |
| Insulation Diameter (In.) | 0.21 |
| Insulation Diameter (mm) | 5.3 |
| Maximum Operating Temperature (°C) | 105 |
Panduit DNF18250FIBX-L Data Sheets
| Catalog Cut Sheets | Cable Ties & Wire Markers Catalog | Download and View |
| Part Drawings | Pre-Printed Wire Markers Part Drawing | Download and View |
| Technical References | Thermal Transfer Printable Vinyl Coated Cloth Tape – GMC4 | Download and View |
