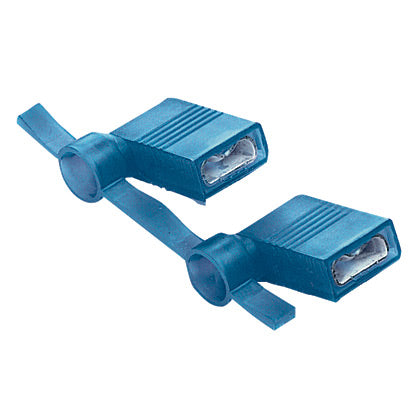

Panduit DNFR14206FIB-KD | Reel Smart Disconnect, Blue, Vinyl, 14-16 AWG, .19" Tab, PK1500
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNFR14206FIB-KD | Reel Smart Disconnect, Blue, Vinyl, 14-16...
Description
Description
Make quick, secure connections in tight spaces with our right-angle female disconnect. It's vibration-resistant and vinyl-insulated with a toolless design to tackle low-voltage projects efficiently.
The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is fully insulated in blue nylon. It has a tab size of 0.187/0.205 x 0.020" (4.8/5.2 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm2). It is 0.57" (14.5 mm) long, 0.37" (9.4 mm) wide, and has a depth of 0.60" (15.2 mm). The disconnect has a funnel entry configuration and a butted seam barrel. It comes in reels of 1500 pieces.
Panduit Reel Smart Female Disconnect, Vibration Resistant, Series: DNFR-FIB, Stranded Conductor, 16 to 14 AWG Conductor, 0.187 to 0.205 in W x 0.02 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.178 in Dia Maximum Nylon Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Blue, Tin Plated, 0.57 in L x 0.37 in W x 0.6 in H, Fully Insulated
Panduit - DNFR14206FIB-KD - Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Right angle design for use in limited space applications
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Disconnects available i common industry tab sizes
Specifications
Specifications
Panduit - DNFR14206FIB-KD - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNFR14206FIB-KD |
| Type | Copper - Other |
| UNSPSC Code | 39121400 |
| Disconnect Type | Female Disconnect-Right Angle |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Maximum Wire Size (AWG) | 14 |
| Minimum Wire Size (AWG) | #16 |
| Wire Strip Length (In.) | 1932-09-01 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.205/0.187 x 0.020 |
| Tab Size (mm) | 5.2/4.8 x 0.5 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Blue |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94-HB |
| Insulation Diameter (In.) | 0.18 |
| Insulation Diameter (mm) | 4.6 |
| Maximum Operating Temperature (°C) | 105 |
| UPC | 07498378947 |
