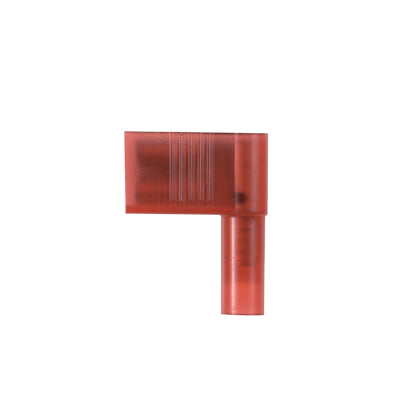

Panduit DNFR18-206B-L | Loose Piece Disconnect | UPC - 07498312803
Regular price
$71.17
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNFR18-206B-L | Loose Piece Disconnect | UPC - 07498312803
Regular price
$71.17
Unit price
Description
Description
Panduit Pan-Term Female Disconnect, Vibration Resistant Loose Piece, Series: DNFR, Stranded Conductor, 22 to 18 AWG Conductor, 0.187 to 0.205 in W x 0.02 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, Specifications: 9/32 in L Wire Strip, 0.132 in Dia Maximum Nylon Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Red, TiN Coated, 0.78 in L x 0.36 in W x 0.2 in H, Insulated
- Continuously molded design provides reliable, consistent performance through the applicator for a high quality termination every time
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit Panduit DNFR18-206B-L | Loose Piece Disconnect | UPC - 07498312803 Key Specs
| Note | DNFR18-206B-L replaces DNFR18-206B-C |
| Disconnect Type | Female Disconnect-Right Angle |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | #18 |
| Minimum Wire Size (AWG) | #22 |
| Minimum Copper Conductor Size (AWG) | #22 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.21 |
| Tab Size (mm) | 5.2 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Red |
| Flammability Rating | HB |
| Insulation Diameter (In.) | 0.13 |
| Insulation Diameter (mm) | 3.4 |
| Maximum Operating Temperature (°C) | 105 |
Panduit Panduit DNFR18-206B-L | Loose Piece Disconnect | UPC - 07498312803 Environmental Information
| Panduit's RoHS Statement | Download and View |
