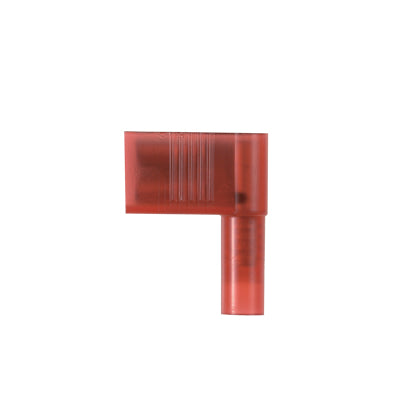

Panduit DNFR18-250B-M | Pan-Term Disconnect, 90°, Red, Nylon, 18-22 AWG, .250 x .032" Tab
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNFR18-250B-M | Pan-Term Disconnect, 90°, Red, Nylon, 18-22...
Description
Description
Make quick, secure connections in tight spaces with our right-angle female disconnect. It's vibration-resistant and vinyl-insulated with a toolless design to tackle low-voltage projects efficiently.
Panduit Pan-Term Female Disconnect, Vibration Resistant, Series: DNFR, Stranded Conductor, 22 to 18 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.132 in Dia Maximum Nylon Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Red, Tin Plated, 0.78 in L x 0.36 in W x 0.2 in H, Insulated
Panduit - DNFR18-250B-M - Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Specifications
Specifications
Panduit - DNFR18-250B-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNFR18-250B-M |
| Disconnect Type | Female Disconnect-Right Angle |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 9/32 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.250 x 0.032 |
| Tab Size (mm) | 6.3 x 0.8 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Pan-Term |
| Maximum Metric Conductor Size (mm²) | 1 |
| UPC | 07498382659 |
Panduit - DNFR18-250B-M - Videos
| Panduit DNFR18-250B-M Video 1 | Click to View |
|---|---|
| Panduit DNFR18-250B-M Video 2 | Click to View |
