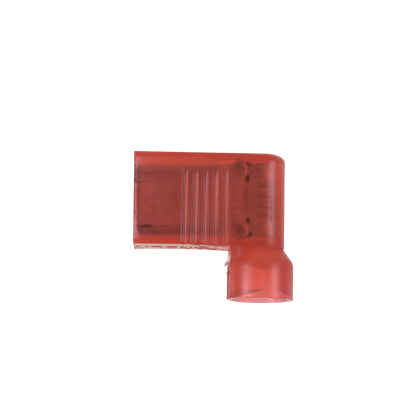

Panduit DNFR18-250FIB-E | Loose Piece Disconnect | UPC - 07498336443

The vibration resistant, right angle style female disconnect is made of brass and is tin-plated. It is insulated in red nylon. It has a tab size of 0.250 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.58" (14.7 mm) long, 0.37" (9.4 mm) wide, and has a depth of 0.60" (15.2 mm). The disconnect has a funnel entry configuration and a butted seam barrel. It comes in bags of 20.

---

Panduit Panduit DNFR18-250FIB-E | Loose Piece Disconnect | UPC - 07498336443 Key Specs

Disconnect Type	Female Disconnect-Right Angle
Insulation Material	Nylon-Fully Insulated
Maximum Copper Conductor Size (AWG)	#18
Maximum Wire Size (AWG)	#18
Minimum Wire Size (AWG)	#22
Minimum Copper Conductor Size (AWG)	#22
Wire Strip Length (In.)	0.28
Wire Strip Length (mm)	7.1
Tab Size (In.)	0.25
Tab Size (mm)	6.3
Standards Met	UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153
Maximum Voltage (V)	600
Base Material	Brass
Finish/Coating	Tinned
Color Code	Red
Flammability Rating	HB
Insulation Diameter (In.)	0.18
Insulation Diameter (mm)	4.6
Maximum Operating Temperature (°C)	105
Maximum Operating Temperature (°F)	221
