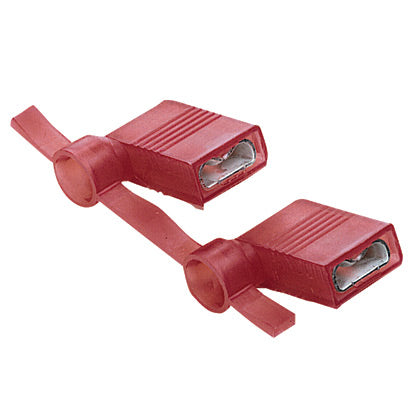

Panduit DNFR18205FIB-KD | Reel Smart Disconnect, Red, Nylon, 18-22 AWG, .205/.187 x .032"
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNFR18205FIB-KD | Reel Smart Disconnect, Red, Nylon, 18-22 ...
Description
Description
Make quick, secure connections in tight spaces with our right-angle female disconnect. It's vibration-resistant and vinyl-insulated with a toolless design to tackle low-voltage projects efficiently.
Panduit Reel Smart Female Disconnect, Vibration Resistant, Series: DNFR-FIB, Stranded Conductor, 22 to 18 AWG Conductor, 0.187 to 0.205 in W x 0.032 in THK Tab, Butted Seam Barrel, Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.178 in Dia Maximum Nylon Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Red, Tin Plated, 0.57 in L x 0.37 in W x 0.6 in H, Fully Insulated
Panduit - DNFR18205FIB-KD - Features
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Premium nylon insulation retains its shape when crimped and provides a tight grip around the wire insulation for maximum strain relief
- Fully insulated design provides protection from electrical shorts
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Specifications
Specifications
Panduit - DNFR18205FIB-KD - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | DNFR18205FIB-KD |
| Disconnect Type | Female Disconnect-Right Angle |
| Insulation Material | Nylon |
| Insulation Type | Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #18 |
| Maximum Wire Size (AWG) | 18 |
| Minimum Wire Size (AWG) | #22 |
| Wire Strip Length (In.) | 11/32 |
| Wire Strip Length (mm) | 8.7 |
| Tab Size (In.) | 0.205/0.187 x 0.032 |
| Tab Size (mm) | 5.2/4.8 x 0.8 |
| Standards Met | UL 310, CSA 22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tin-Plated |
| Color Code | Red |
| Barrel Type | Funnel Entry |
| Flammability Rating | UL94-HB |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
| Sub Brand | Reel Smart |
| Maximum Metric Conductor Size (mm²) | 1 |
| UPC | 07498378957 |
Panduit - DNFR18205FIB-KD - Videos
| Panduit DNFR18205FIB-KD Video 1 | Click to View |
|---|---|
| Panduit DNFR18205FIB-KD Video 2 | Click to View |
