Brand: Panduit
|
SKU:
PAN-DNG14-187FB-3K

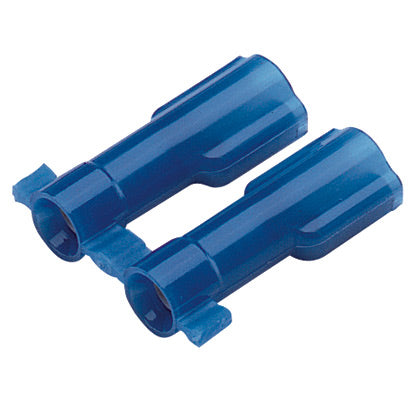

Panduit DNG14-187FB-3K | Loose Piece Disconnect | UPC - 07498368741
Regular price
$1,420.25
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNG14-187FB-3K | Loose Piece Disconnect | UPC - 07498368741
Regular price
$1,420.25
Unit price
Brand: Panduit
|
SKU:
PAN-DNG14-187FB-3K
Regular price
$1,420.25
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Term Supra-Grip Female Disconnect, Loose Piece, Series: DNF-FB, Stranded Conductor, 16 to 14 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Butted Seam Barrel, Double Crimp Terminal, 600 VAC, 9/32 in L Wire Strip, 0.153 in Dia Maximum Nylon Insulation, Funnel Entry Barrel Configuration, 221 deg F, Brass, Blue, Tin Plated, 0.89 in L x 0.29 in W x 0.22 in H, Fully Insulated
Features + Benefits
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Metal insulation grip sleeve crimps to wire insulation, providing protection to the crimp joint during high vibration applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit DNG14-187FB-3K | Loose Piece Disconnect | UPC - 07498368741 Key Specs
| Disconnect Type | Female Disconnect-Right Angle |
| Insulation Material | Nylon |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.21 |
| Tab Size (mm) | 5.2 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Blue |
| Flammability Rating | HB |
| Insulation Diameter (In.) | 0.16 |
| Insulation Diameter (mm) | 4 |
| Maximum Operating Temperature (°C) | 105 |
| Maximum Operating Temperature (°F) | 221 |
Panduit DNG14-187FB-3K | Loose Piece Disconnect | UPC - 07498368741 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - DNG18-187FB-3K Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - A4157107 | Download and View |
| Selection Guides | Terminal Tools Selection Guide | Download and View |
Panduit DNG14-187FB-3K | Loose Piece Disconnect | UPC - 07498368741 Environmental Information
| Panduit's RoHS Statement | Download and View |
