Brand: Panduit
|
SKU:
10044116

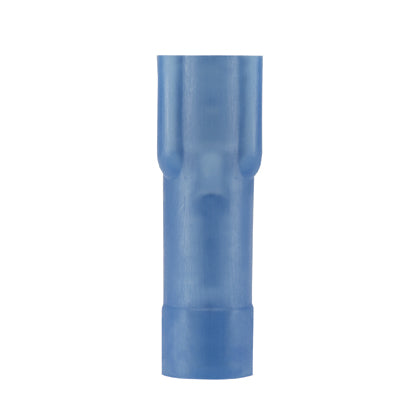

Panduit DNG14-187FB-L | Loose Piece Disconnect | UPC - 07498312039
Regular price
$78.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit DNG14-187FB-L | Loose Piece Disconnect | UPC - 07498312039
Regular price
$78.58
Unit price
Description
Description
Panduit Female Disconnect, Type DNG-FB Loose Piece, Stranded Conductor, 16 to 14 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Butted Seam/Flared/Funnel Entry/Internal Serration Barrel, Double Crimp Terminal, 600 V, Specifications: 0.153 in Dia Nylon Insulation, 0.28 in Mounting Hole Size, 9/32 in L Wire Strip, 221 deg F, Brass, Blue, Tin Plated, 0.89 in L x 0.29 in W x 0.25 in H, Fully Insulated
- Disconnect can be inserted and removed from the male tab without the use of tools for lower installed cost
- Sleeved barrel helps to facilitate high mechanical and electrical performance when crimping
- Barrel of terminal internally beveled to provide quick and easy wire insertion
- Internal barrel serrations assure good wire contact and maximum tensile strength
- Internal wire stop assures proper length of insertion into terminal barrel, providing a higher quality connection
Panduit Panduit DNG14-187FB-L | Loose Piece Disconnect | UPC - 07498312039 Key Specs
| Note | DNG14-187FB-L replaces DNG14-187FB-C |
| Disconnect Type | Female Disconnect-Right Angle |
| Insulation Material | Nylon-Fully Insulated |
| Maximum Copper Conductor Size (AWG) | #14 |
| Maximum Wire Size (AWG) | #14 |
| Minimum Wire Size (AWG) | #16 |
| Minimum Copper Conductor Size (AWG) | #16 |
| Wire Strip Length (In.) | 0.28 |
| Wire Strip Length (mm) | 7.1 |
| Tab Size (In.) | 0.19 |
| Tab Size (mm) | 4.8 |
| Standards Met | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212 ,C22.2 No.153, UL Recognized |
| Maximum Voltage (V) | 600 |
| Base Material | Brass |
| Finish/Coating | Tinned |
| Color Code | Blue |
| Flammability Rating | HB |
| Insulation Diameter (In.) | 0.15 |
| Insulation Diameter (mm) | 3.9 |
| Maximum Operating Temperature (°C) | 105 |
Panduit Panduit DNG14-187FB-L | Loose Piece Disconnect | UPC - 07498312039 Environmental Information
| Panduit's RoHS Statement | Download and View |
